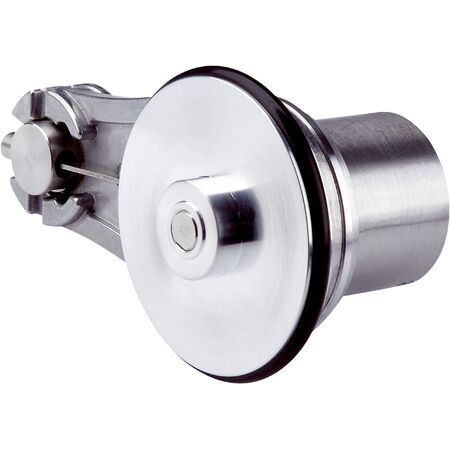

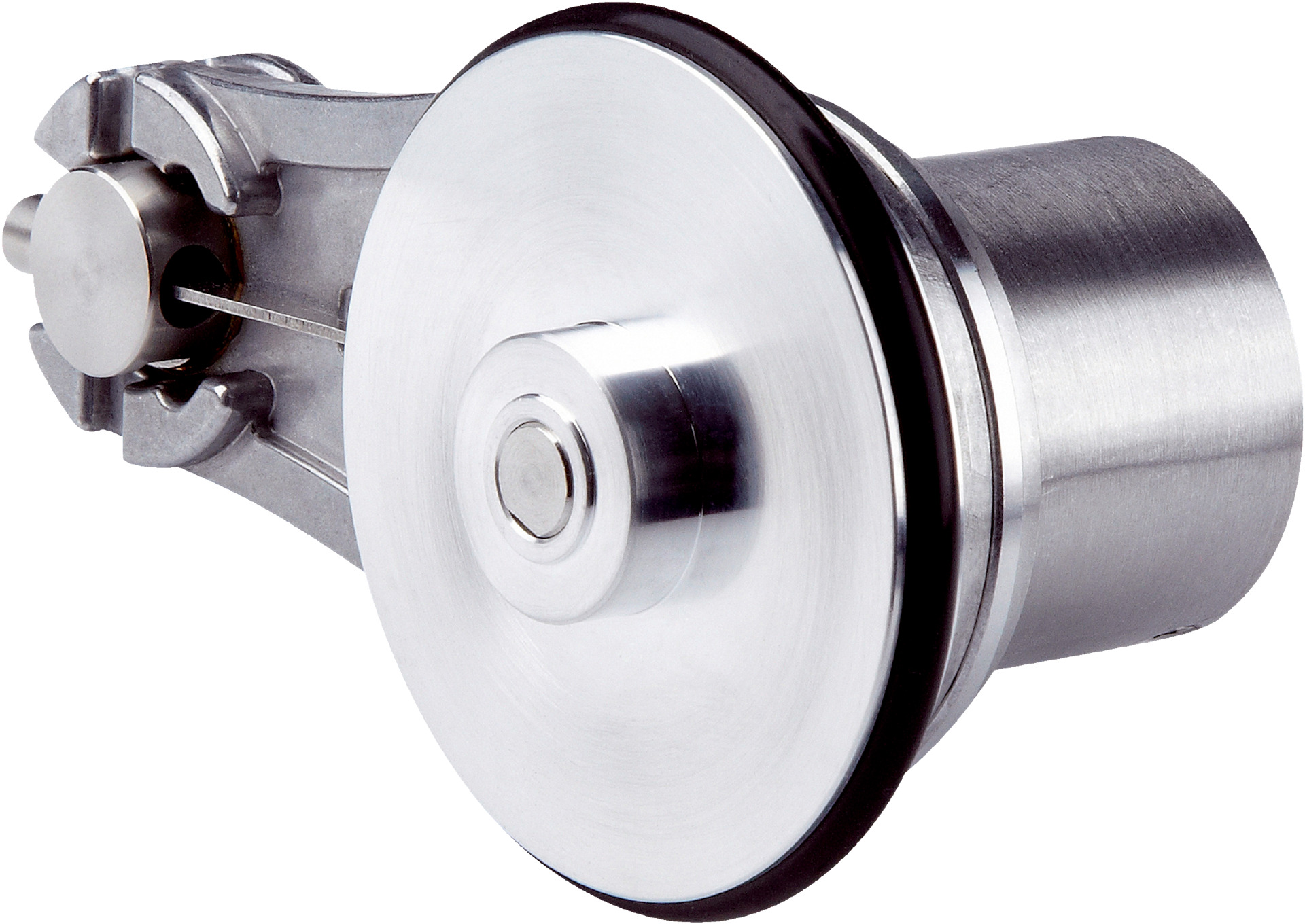

Measuring Wheel Encoder DBV50E-22GKA0500 | 500 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Measuring Wheel Encoder DBV50E-22GKA0500 offers high precision with 500 pulses per revolution, making it ideal for industrial automation and mobile machinery applications. Built with a robust aluminum housing and stainless steel shaft, it features an IP65 rated enclosure for dust and water resistance, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DBV50E-22GKA0500 | 500 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1084979
Alternatively Known As: Measuring wheel encoder, incremental encoder, rotary encoder, distance encoder, SICK encoder
Technical Specifications
- Pulses per revolution: 500
- Resolution: 2.5 pulses/mm
- Measuring increment: 0.4 mm/pulse
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5 %
- Initialization time: < 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 3
- Operating power consumption: 50 mA
- Supply voltage: 7 V to 27 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection and short-circuit protection included
- Measuring wheel circumference: 200 mm
- Spring arm length: 63.5 mm
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Operating torque: 0.6 Ncm at 20°C
- Maximum operating speed: 3000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +70°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.3 kg
Key Features
- High resolution with 500 pulses per revolution
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +70°C
- Reverse polarity and short-circuit protection
- Low operating power consumption of 50 mA
- Spring arm design with durable aluminum measuring wheel
- High maximum operating speed up to 3000 min⁻¹
- Long bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Robotics and material handling systems
- Mobile machinery and vehicle distance tracking
Standards & Compliance
- Complies with AS/NZS 61000-6-2 and AS/NZS 61000-6-3 for EMC standards
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DBV50E-22GKA0500 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
