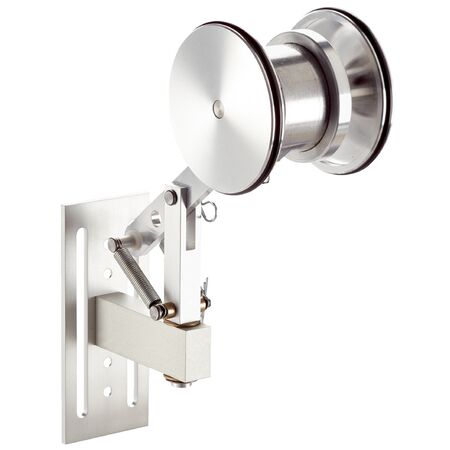

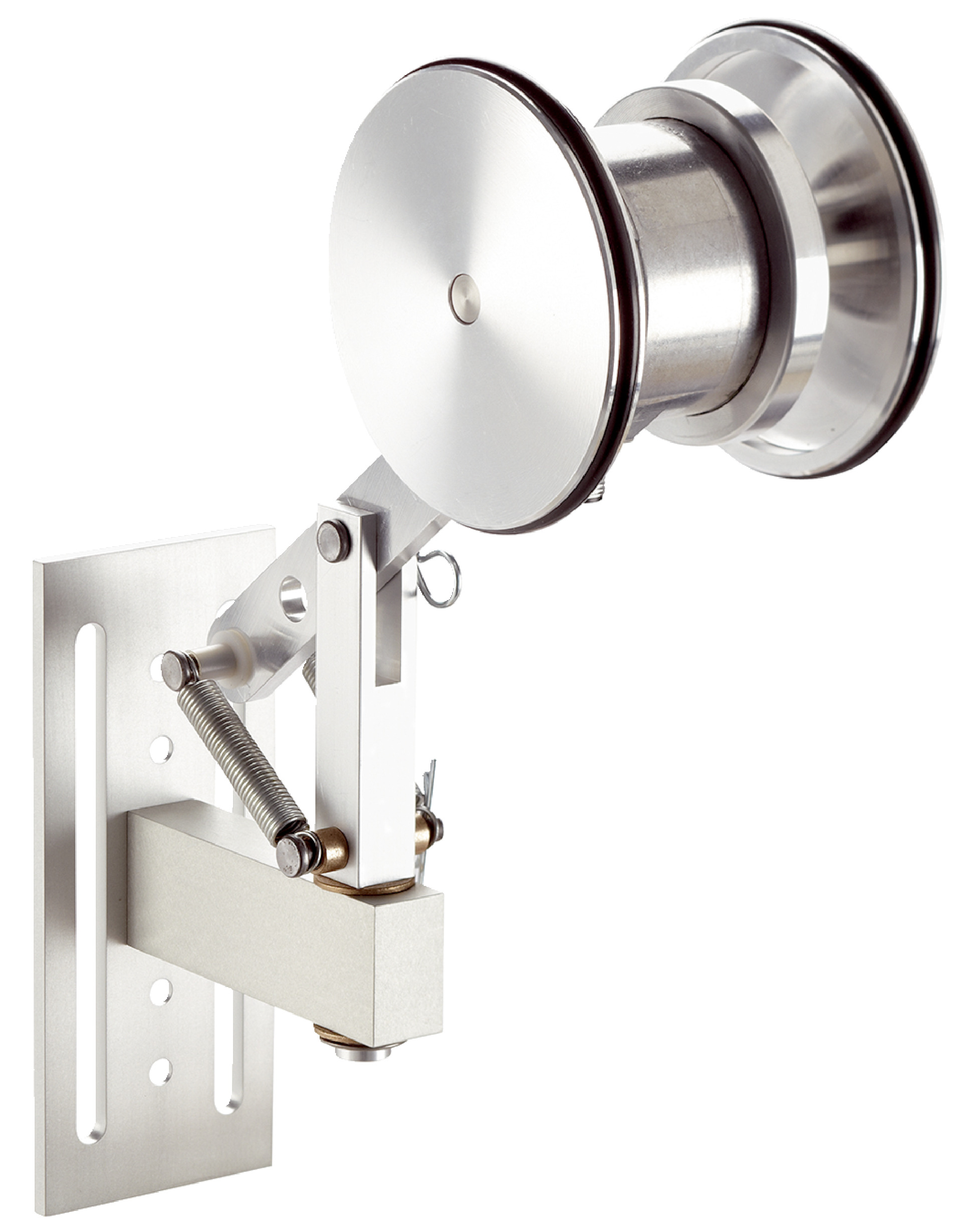

Measuring Wheel Encoder DFV60A-22PM65536 | 65,536 Pulses/Rev | IP65 Rated | by SICK
The Measuring Wheel Encoder DFV60A-22PM65536 offers high precision with 65,536 pulses per revolution and an incremental communication interface. Designed for industrial measurement and automation, it features a robust aluminum housing and stainless steel shaft, ensuring durability in demanding environments. With an operating temperature range of -20°C to +100°C, this encoder is perfect for position and speed detection in conveyor systems and precision length measurement in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DFV60A-22PM65536 | 65,536 Pulses/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1051337
Alternatively Known As: Measuring wheel encoder, incremental encoder, rotary encoder, position encoder
Technical Specifications
- Pulses per revolution: 65,536
- Resolution: 218.45 pulses/mm
- Measuring increment: 0.005 mm/pulse
- Measuring step deviation: ±0.002°
- Error limits: ±4 mm/m depending on measuring wheel and conditions
- Initialization time: 30 ms
- Communication interface: Incremental TTL/HTL
- Connection type: 8-wire cable, 5 m length
- Power supply: 4.5 V to 32 V
- Max load current: 30 mA
- Max output frequency: 820 kHz
- Reference signal: 1, positioned at 90° electrically gated with A and B
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PUR
- Operating torque: 0.6 Ncm at 20°C
- Max operating speed: 3,000 min⁻¹
- Bearing lifetime: 3 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature: -20°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 50mm x 80mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Incremental communication interface with TTL/HTL
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +100°C
- Reverse polarity and short-circuit protection
- Programmable and configurable interface
- High maximum output frequency of 820 kHz
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup and calibration.
Applications
- Industrial measurement and automation
- Position and speed detection in conveyor systems
- Precision length measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 30 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFV60A-22PM65536 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
