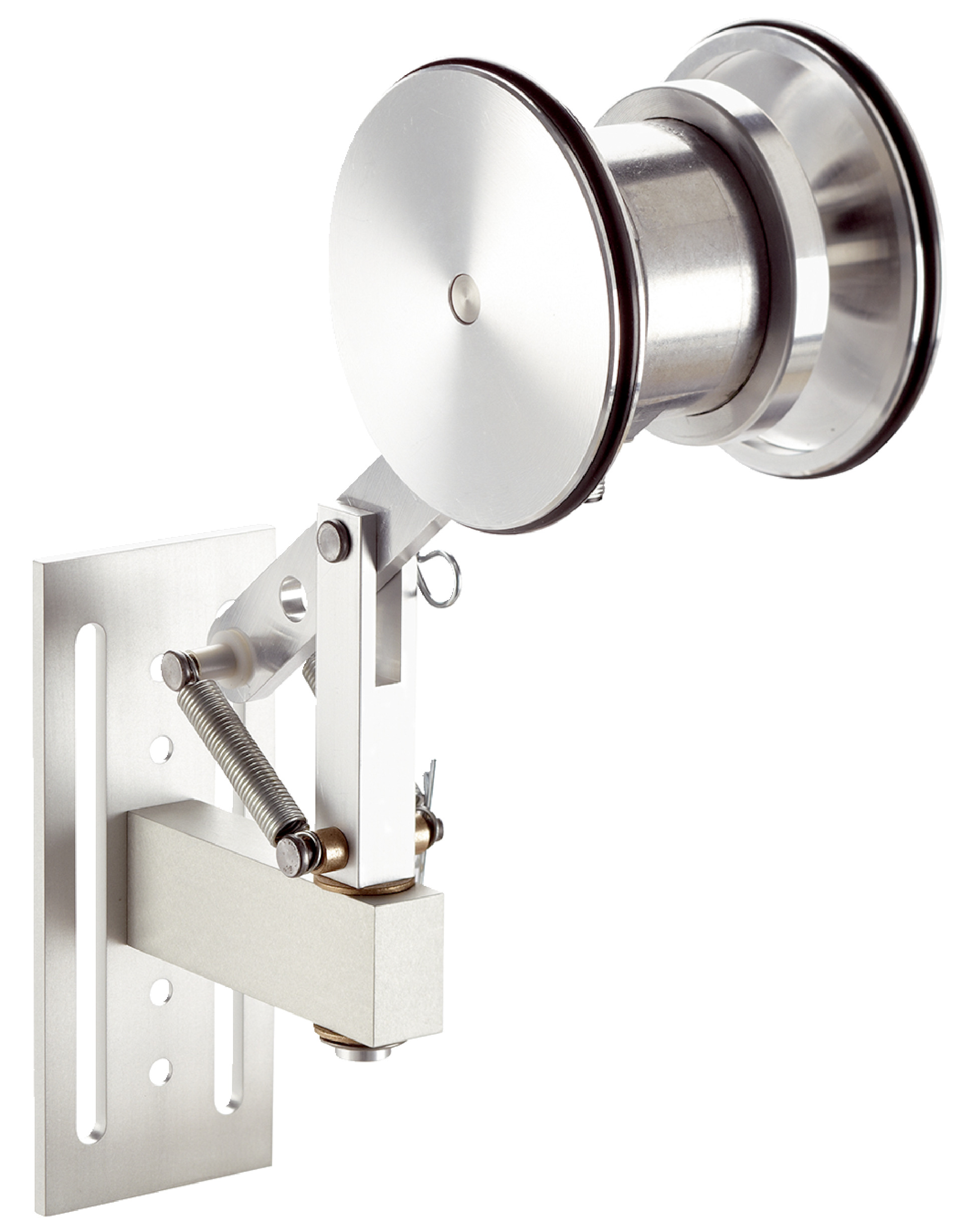

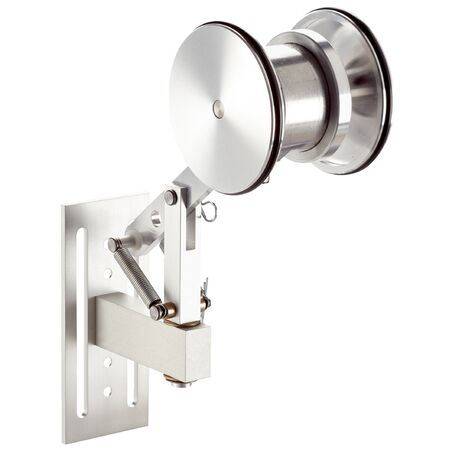

Measuring Wheel Encoder DFV60A-2ZPC00S14 | 8192 Pulses/Rev | IP65 Rated | High Resolution | by SICK
The Measuring Wheel Encoder DFV60A-2ZPC00S14 offers high precision with 8192 pulses per revolution and a resolution of 27.32 pulses/mm, making it ideal for industrial automation and precise distance measurement. With an IP65 rated enclosure, it ensures durability in harsh environments, while its robust aluminum housing and stainless steel shaft provide longevity and reliability for various applications, including conveyor belt monitoring and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DFV60A-2ZPC00S14 | 8192 Pulses/Rev | IP65 Rated | High Resolution | by SICK
Brand: SICK
SKU: 1130709
Alternatively Known As: Measuring wheel encoder, incremental encoder, rotary encoder, DFV60 encoder
Technical Specifications
- Pulses per revolution: 8192
- Resolution: 27.32 pulses/mm
- Measuring increment: 0.0366 mm/pulse
- Measuring step deviation: ±0.002°
- Error limits: ±4 mm/m depending on measuring wheel and conditions
- Initialization time: 30 ms
- Communication interface: Incremental TTL/HTL
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 V to 32 V
- Max load current: 30 mA
- Max output frequency: 820 kHz
- Reference signal: 1, 90° electric, logically gated with A and B
- Operating speed: up to 1500 min⁻¹, max 3000 min⁻¹
- Bearing lifetime: 3 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature: -20°C to +100°C
- Storage temperature: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Preprogrammed pulses per revolution: 8192 with TTL setting
- Incremental communication interface with TTL/HTL compatibility
- Robust aluminum housing and stainless steel shaft
- High resolution of 27.32 pulses/mm and measuring increment of 0.0366 mm/pulse
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +100°C
- Reverse polarity and short-circuit protection
- Maximum output frequency of 820 kHz
- Mounting position preferably from above, with flexibility
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Material handling and logistics systems
- Robotics and machine control requiring incremental position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 30 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFV60A-2ZPC00S14 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
