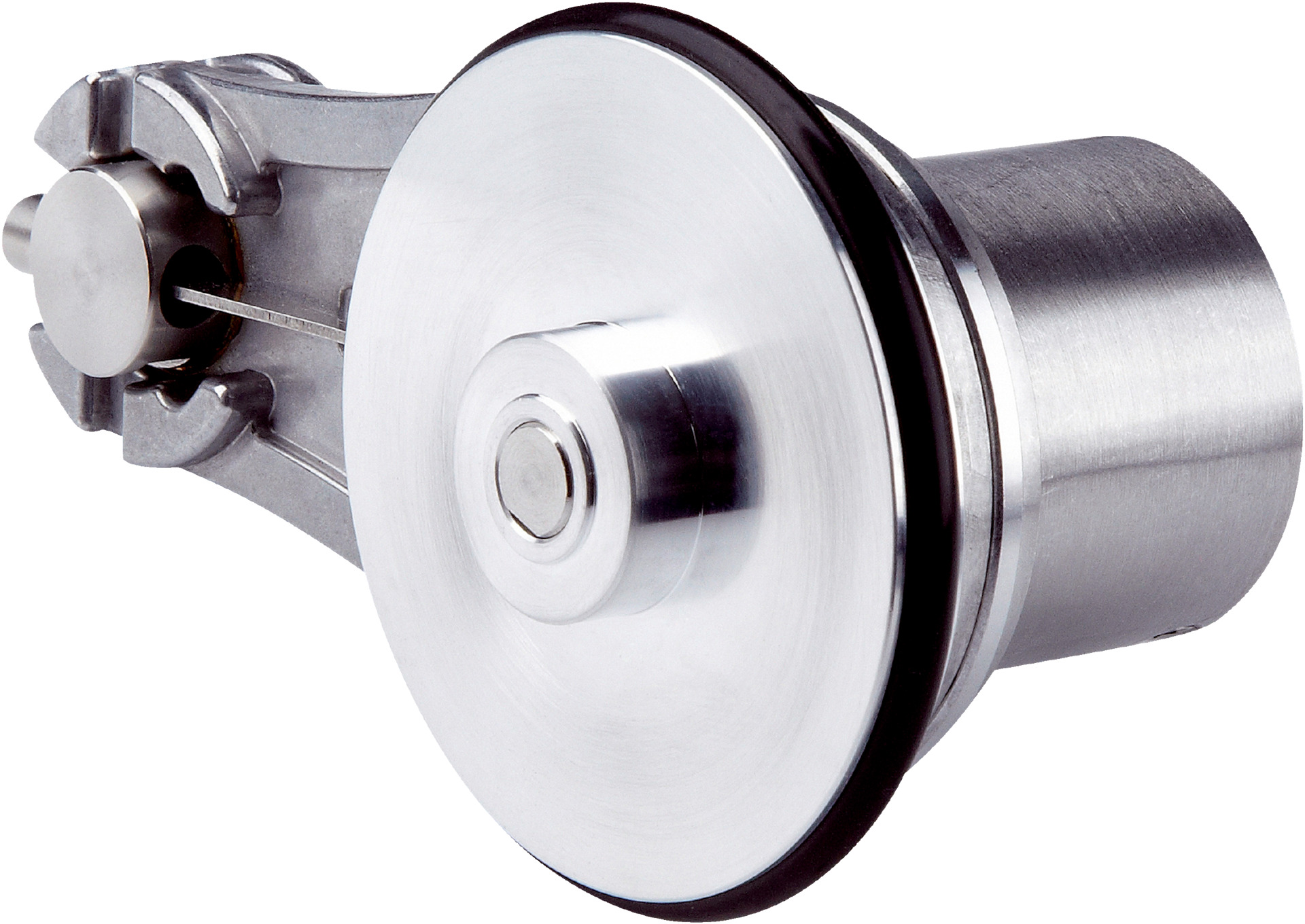

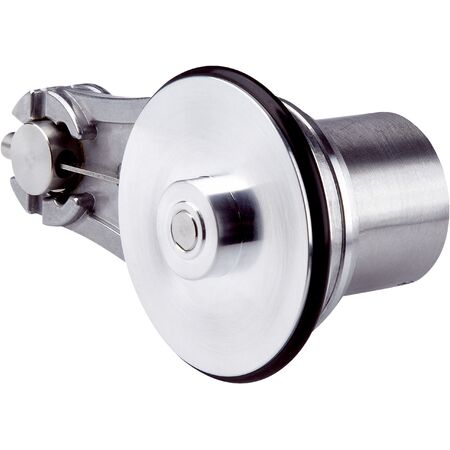

Product Name/Title: Measuring Wheel Encoder DBV50E-22AMA2000 | 2000 Pulses/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1081350
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder DBV50E
Technical Specifications
- Pulses per revolution: 2,000
- Resolution: 10 pulses/mm
- Measuring increment: 0.1 mm per pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Operating power consumption: 50 mA (no load)
- Supply voltage: 4.5 V to 5.5 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1 at 90°, logically gated with A and B
- Spring arm length: 63.5 mm
- Measuring wheel circumference: 200 mm
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Operating torque: 0.6 Ncm at 20°C
- Maximum operating speed: 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Measuring increment of 0.1 mm per pulse
- Robust aluminum housing with IP65 enclosure rating
- Spring arm design with corrosion-resistant materials
- TTL / RS-422 incremental communication interface
- Short-circuit protection on outputs
- Operating temperature range from -20°C to +85°C
- High bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical connections to ensure proper setup and safety.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Mobile machinery and vehicle distance tracking
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA reduces energy usage
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBV50E-22AMA2000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
