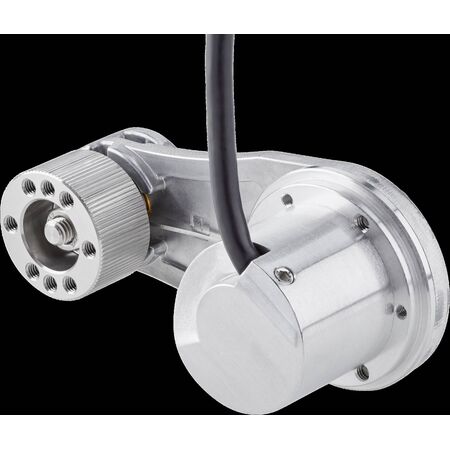

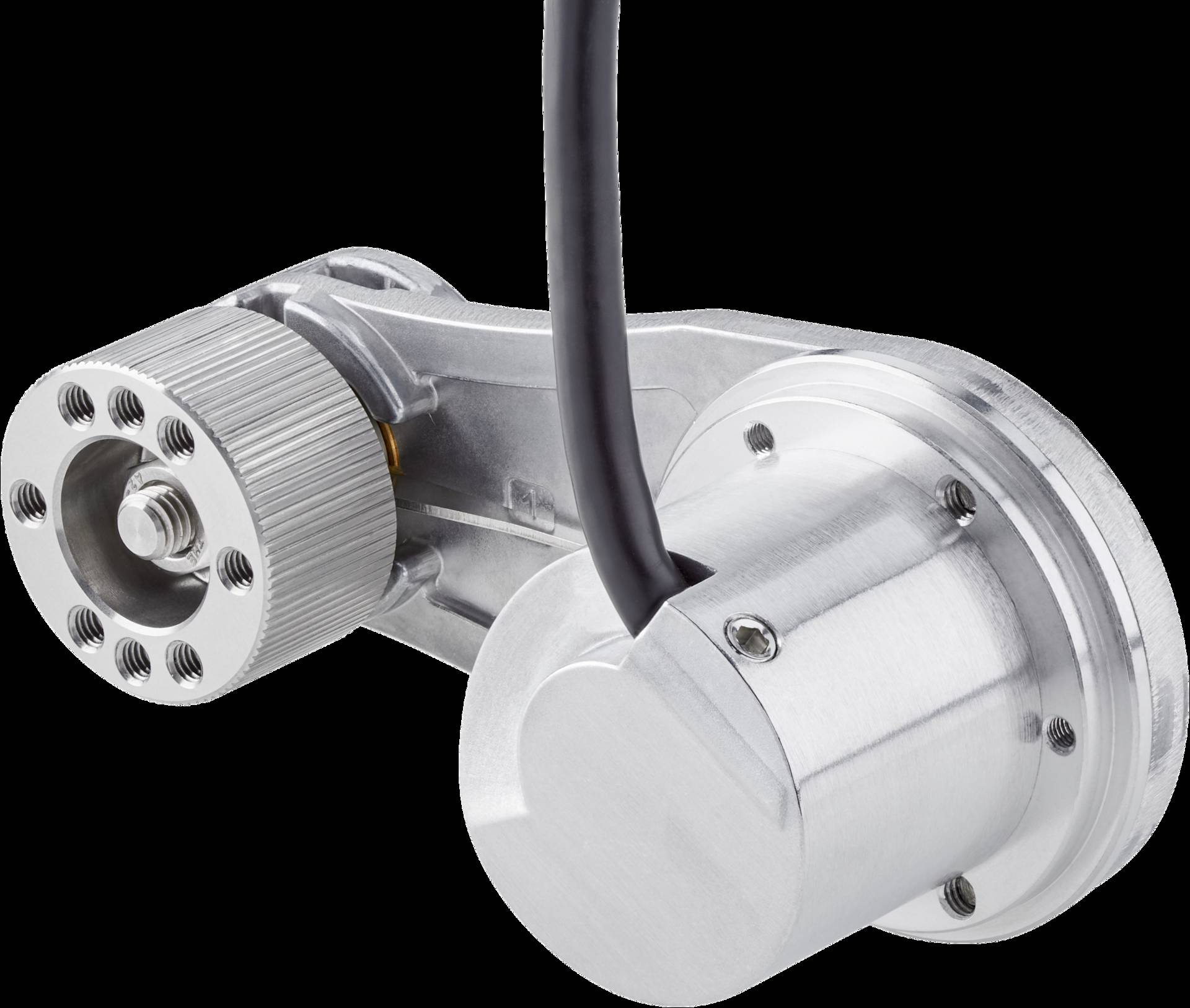

Measuring Wheel Encoder MWS075 | Incremental Communication | Adjustable Contact Pressure | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise measurement of dynamic linear surface movements, featuring an incremental communication interface and manually adjustable contact pressure from 0 to 15 N. Ideal for industrial motion control and automation applications, this encoder ensures accurate measurements and efficient system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Incremental Communication | Adjustable Contact Pressure | Compact Design | by SICK
Brand: SICK
SKU: 1146265
Alternatively Known As: Measuring wheel encoder, linear surface movement sensor, motion control encoder
Technical Specifications
- Communication interface: Incremental
- Communication interface detail: HTL, Push pull
- Programmable/configurable: No
- Singleturn version
- Connection: Cable with male connector
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm, mechanically protected
- Contact pressure manually adjustable from 0 to 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise and repeatable measurements
- Supports all available encoder interfaces
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and accurate measurements.
Applications
- Industrial sectors requiring precise measurement of dynamic linear surface movements
- Motion control systems
- Automation and positioning applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Accurate measurements improve system efficiency and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MWS075 measuring wheel encoder is available now for immediate purchase. Ideal for industrial motion control and automation applications.
