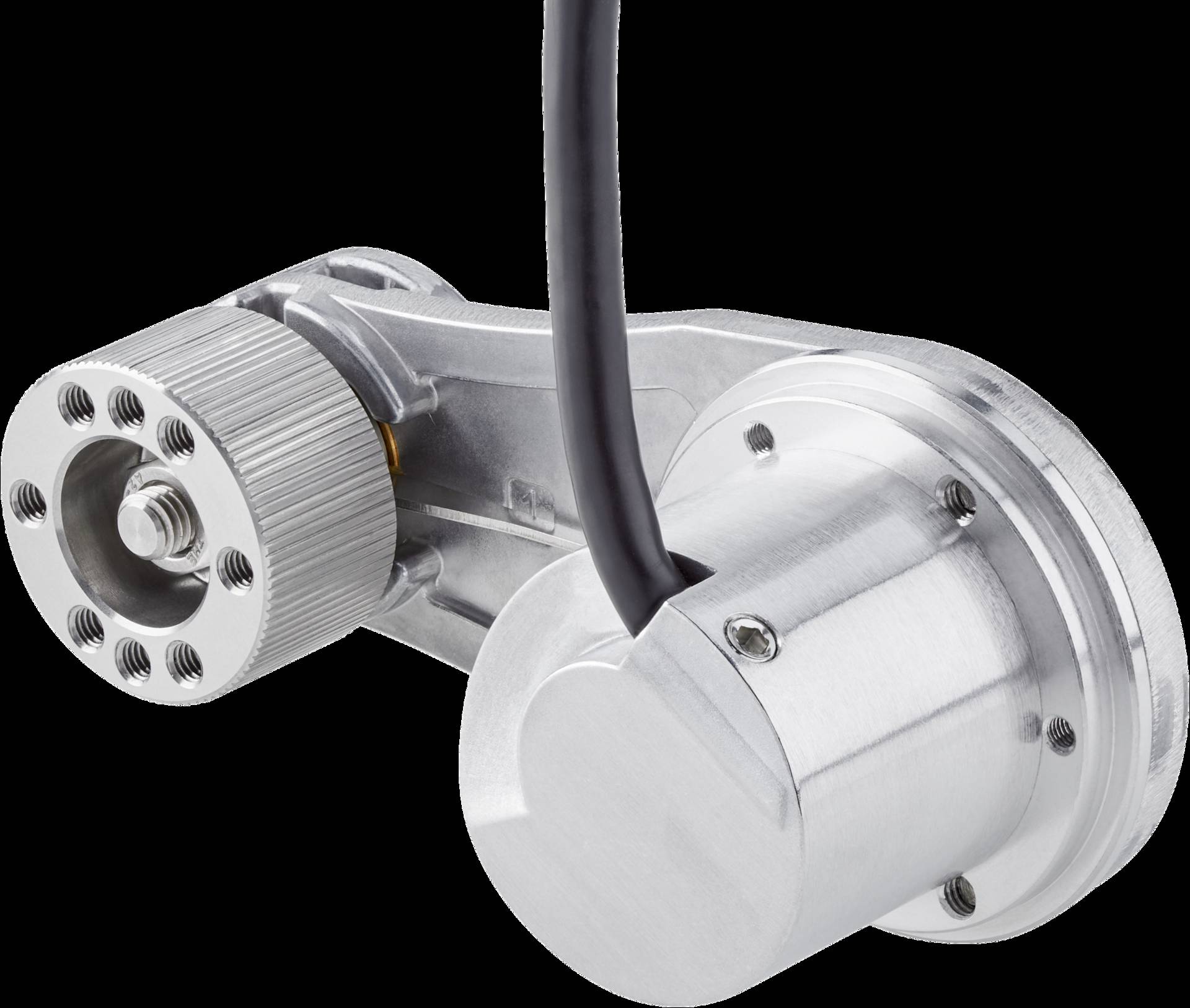

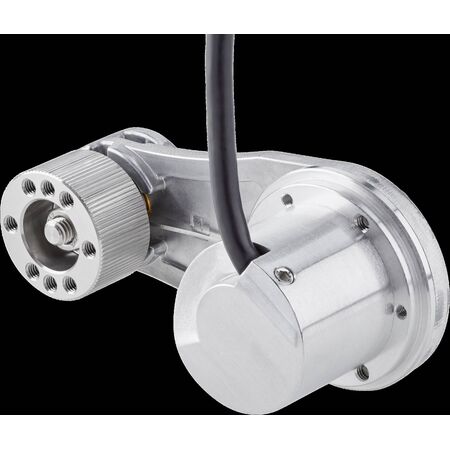

Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | Compact Axle Spacing | by SICK
The MWS075 measuring wheel encoder is designed for precise linear surface movement measurement in industrial automation. With manually adjustable contact pressure up to 15 N and a compact axle spacing of 63.5 mm, it integrates seamlessly into motion control systems for accurate speed and position feedback. Ideal for various industrial applications, this encoder ensures reliable performance and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | Compact Axle Spacing | by SICK
Brand: SICK
SKU: 1146256
Alternatively Known As: Measuring wheel encoder, linear movement encoder, surface movement sensor
Technical Specifications
- Communication interface: Incremental (HTL, Push pull)
- Programmable/configurable: No
- Singleturn version
- Connection type: Cable
- Spring arm travel: ±5 mm
- Maximum contact pressure: 15 N
- Axle spacing: 63.5 mm
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces for flexible integration
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical overload protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and calibration for accurate measurements.
Applications
- Industrial automation for precise linear surface movement measurement
- Motion control systems requiring accurate speed and position feedback
- Integration in various industrial sectors needing reliable measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Accurate measurement improves system efficiency and reduces energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
