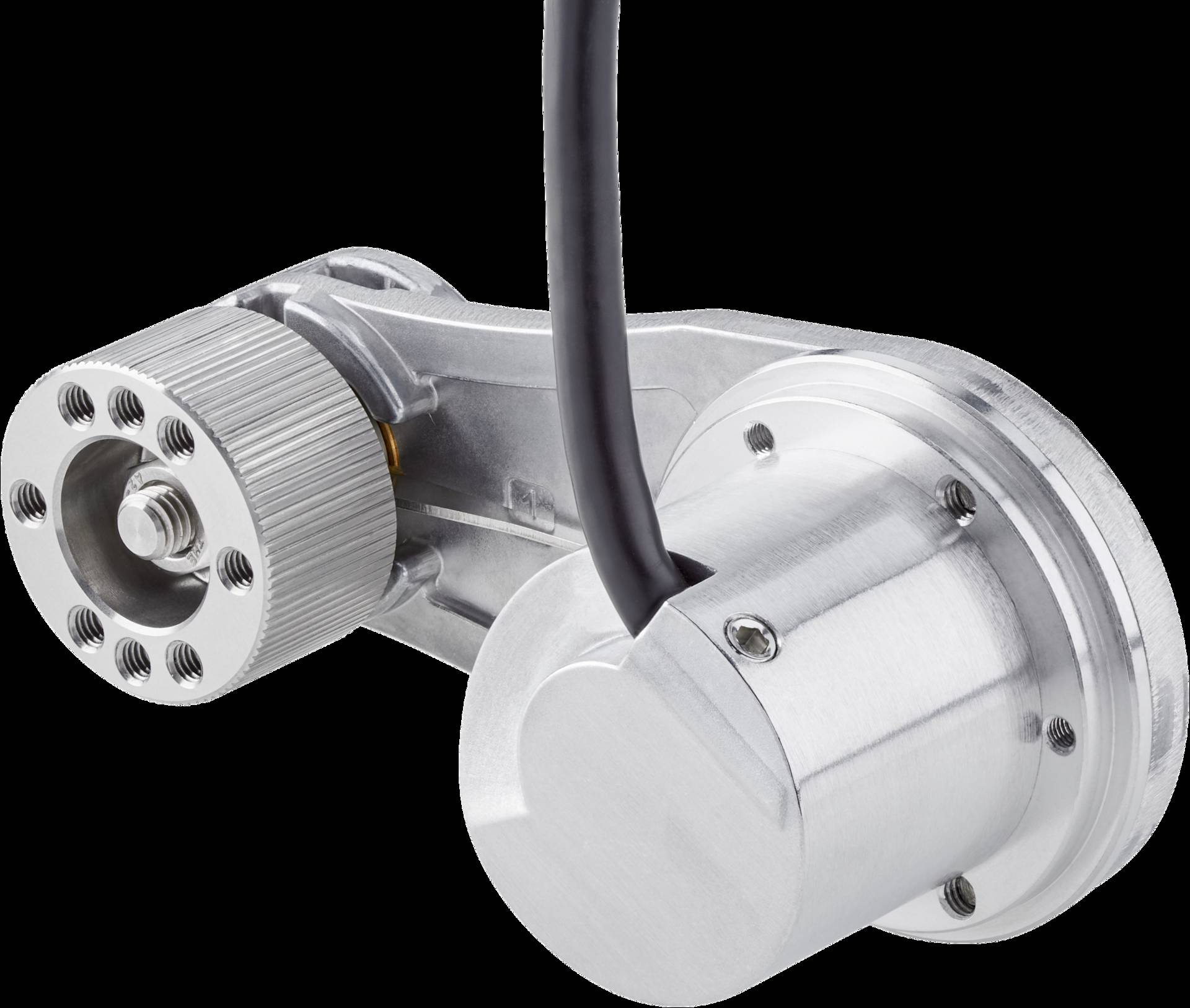

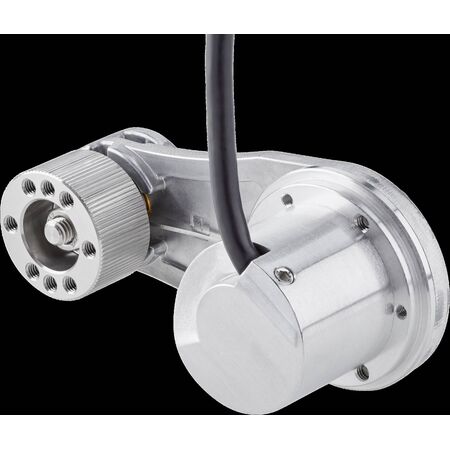

Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | HTL & Push Pull Interface | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise linear surface movement measurement in industrial automation. With manually adjustable contact pressure from 0 to 15 N and support for HTL and Push pull interfaces, it ensures accurate speed and position feedback. Ideal for motion control systems, this encoder features a compact axle spacing of 63.5 mm and is built for reliable performance across various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | HTL & Push Pull Interface | Compact Design | by SICK
Brand: SICK
SKU: 1146308
Alternatively Known As: Measuring wheel encoder, linear surface movement sensor, motion control encoder
Technical Specifications
- Communication interface: Incremental
- Communication interface detail: HTL, Push pull
- Programmable/configurable: No
- Singleturn version
- Connection: Cable with male connector
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm with mechanical protection
- Contact pressure manually adjustable from 0 to 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces including HTL and Push pull
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical overload protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and calibration within the application environment.
Applications
- Industrial automation for dynamic linear surface movement measurement
- Motion control systems requiring precise speed and position feedback
- Integration in various industrial sectors needing reliable measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Accurate measurement improves system efficiency and reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
