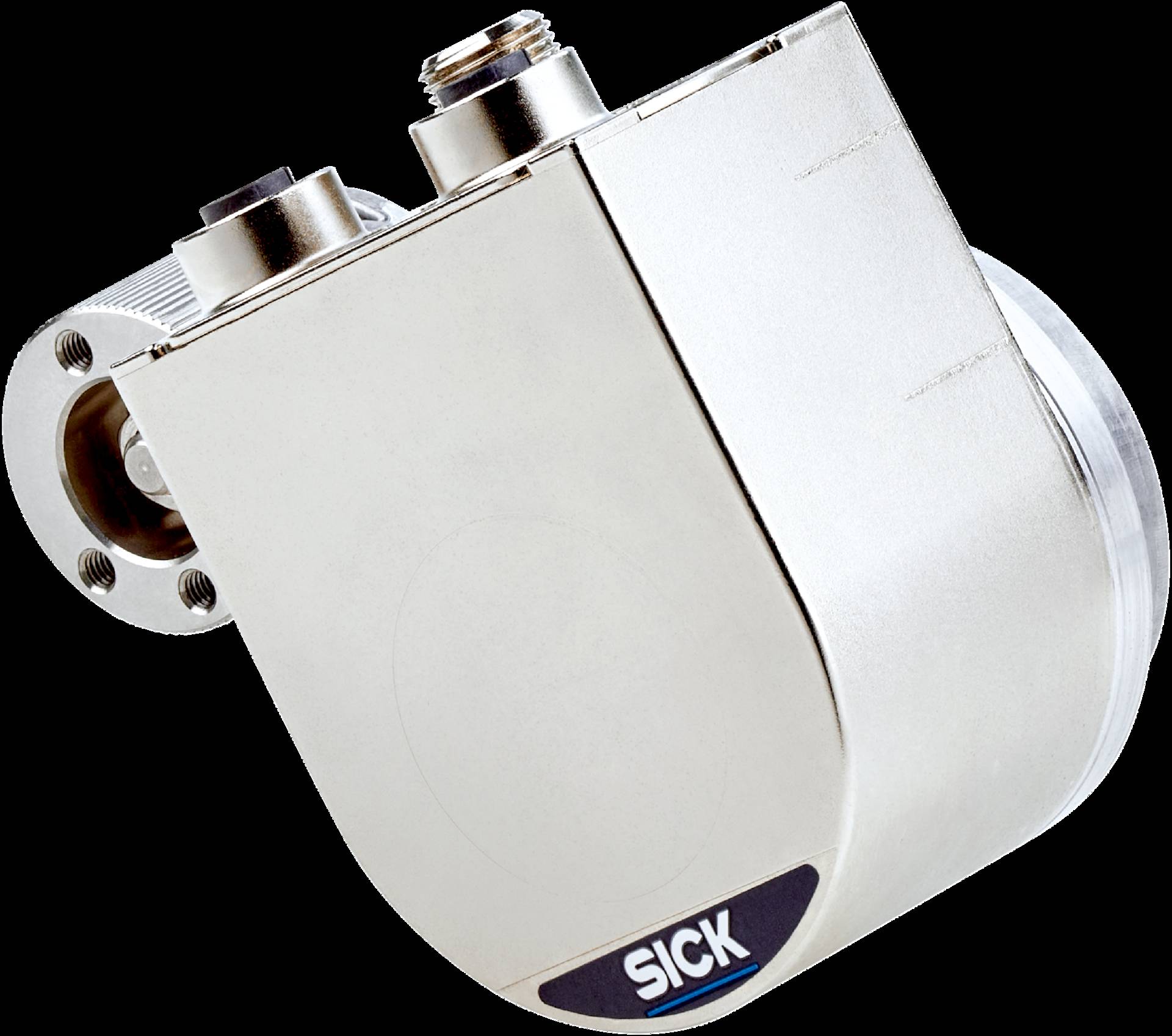

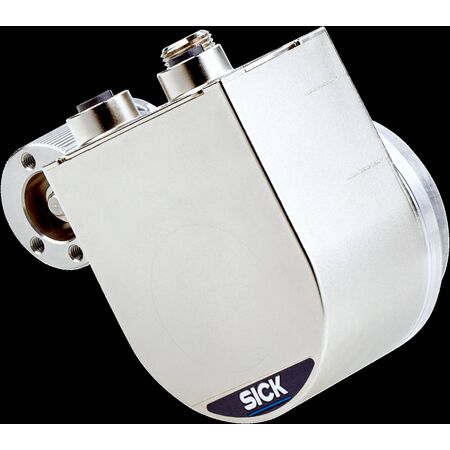

Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | PROFINET Interface | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise linear surface movement measurement in industrial automation. With manually adjustable contact pressure from 0 to 15 N and a compact axle spacing of 63.5 mm, it integrates seamlessly into motion control systems. Ideal for manufacturing and processing equipment, this encoder enhances system efficiency by providing accurate measurement data.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | PROFINET Interface | Compact Design | by SICK
Brand: SICK
SKU: 1151264
Alternatively Known As: Measuring wheel encoder, linear movement encoder, surface movement sensor
Technical Specifications
- Communication Interface: PROFINET
- Connection: male connector, female connector
- Programmable/configurable: No
- Singleturn or multiturn version: N/A
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm with mechanical protection
- Contact pressure: manually adjustable from 0 to 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces for versatile integration
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical overload protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and calibration within the application environment.
Applications
- Industrial automation for precise linear surface movement measurement
- Motion control systems requiring accurate speed and position feedback
- Integration in manufacturing and processing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances system efficiency by providing accurate measurement data, reducing waste and energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
