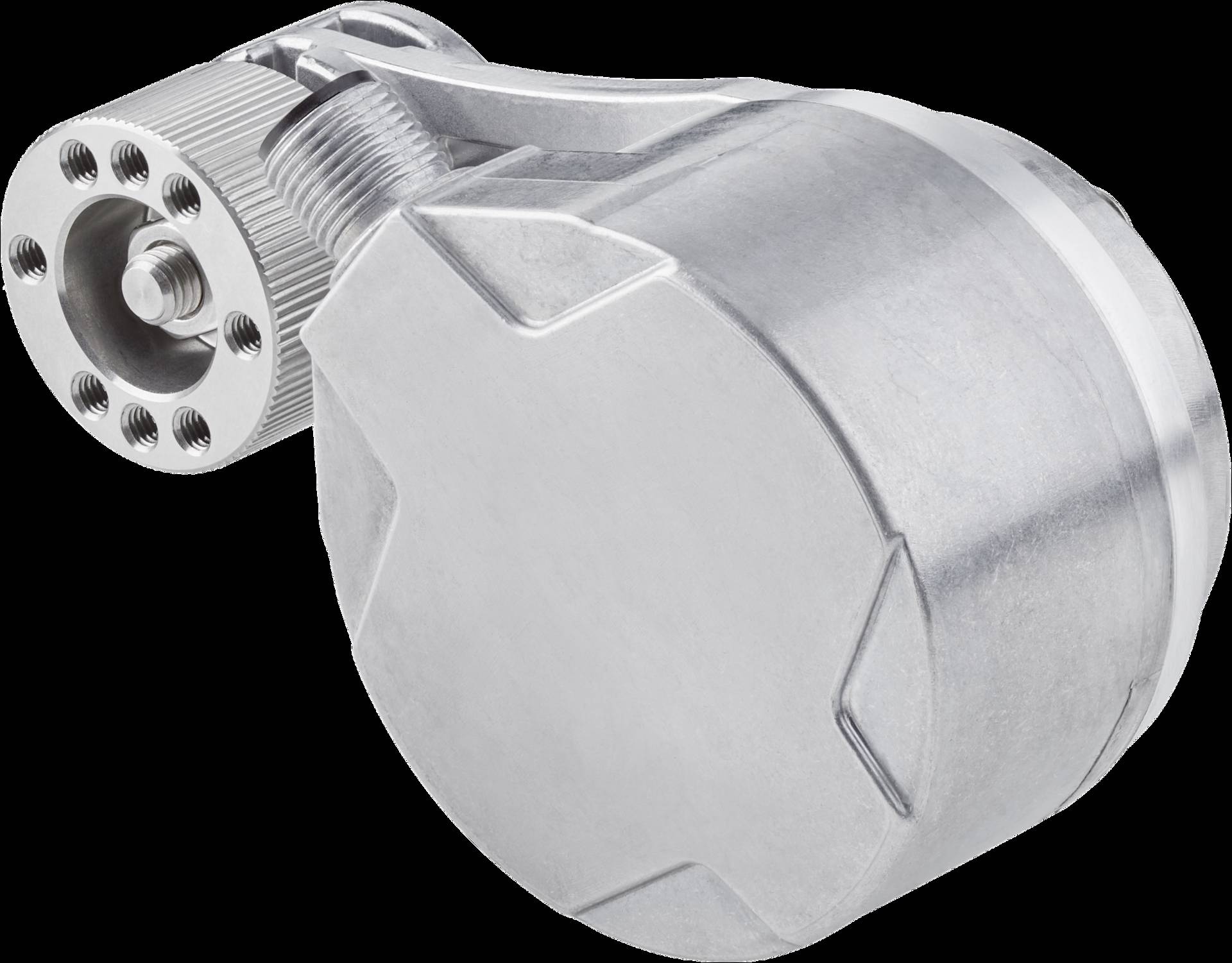

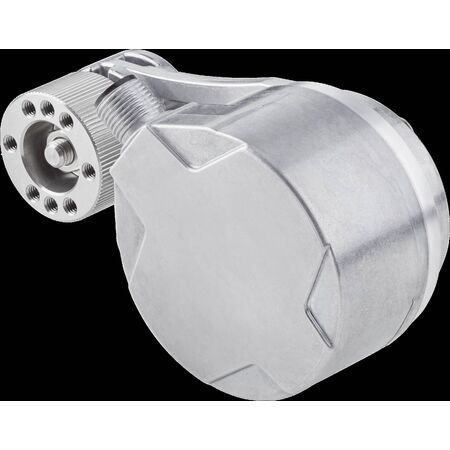

Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | TTL & HTL Support | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise linear movement measurement in industrial automation. With manually adjustable contact pressure from 0 to 15 N and support for TTL and HTL communication interfaces, it ensures accurate speed and position feedback. Ideal for motion control systems, this encoder features a compact axle spacing of 63.5 mm and is built for reliable performance across various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Adjustable Contact Pressure | TTL & HTL Support | Compact Design | by SICK
Brand: SICK
SKU: 1146359
Alternatively Known As: Measuring wheel encoder, linear movement encoder, surface movement sensor
Technical Specifications
- Communication interface: Incremental
- Communication interface detail: TTL, HTL
- Programmable/configurable: Yes
- Connection type: Male connector
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm with mechanical protection
- Contact pressure: Manually adjustable from 0 to 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces including TTL and HTL
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical overload protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and calibration.
Applications
- Industrial automation for dynamic linear surface movement measurement
- Motion control systems requiring precise speed and position feedback
- Integration in various industrial sectors needing reliable measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Accurate measurement improves system efficiency and reduces energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
