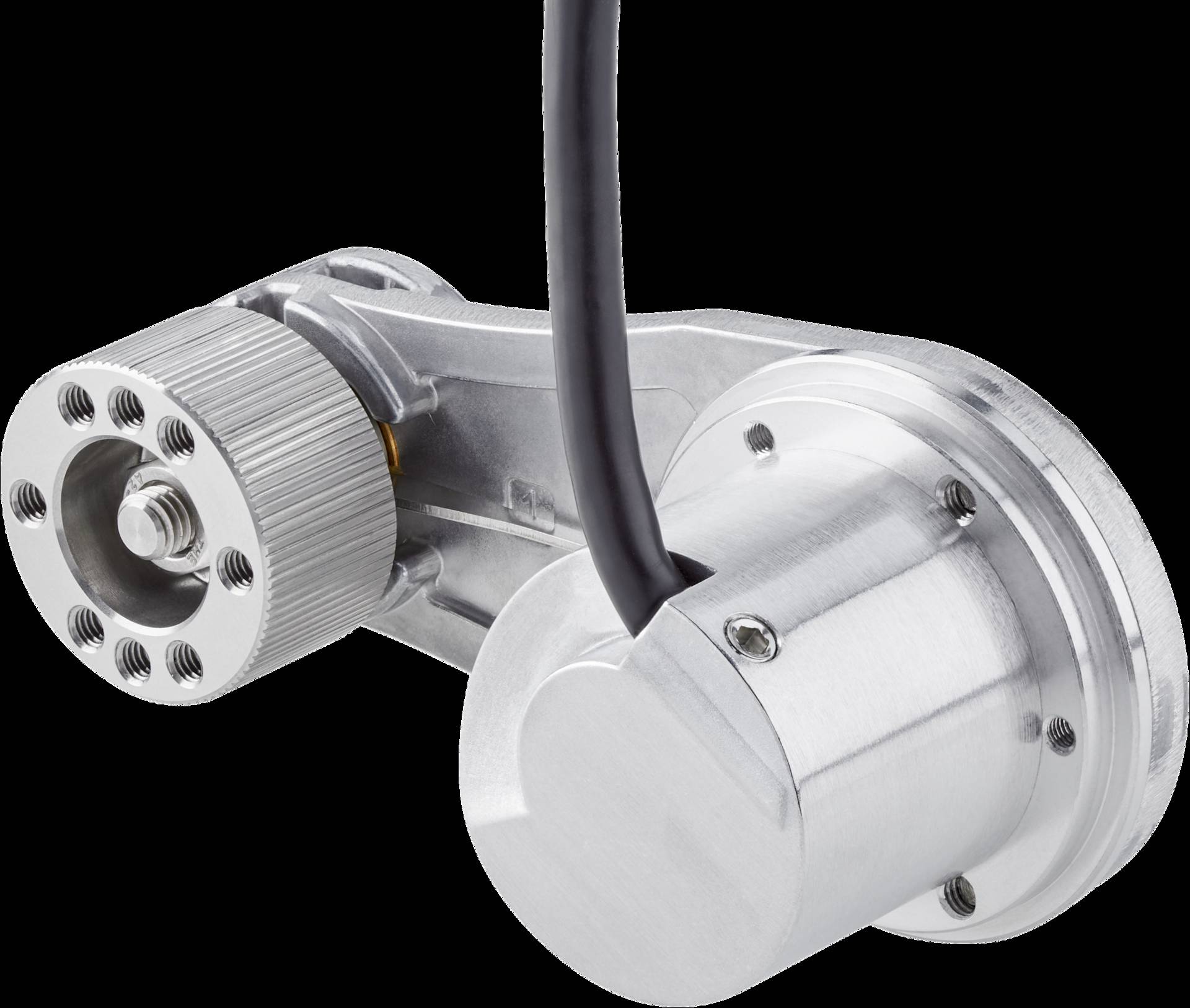

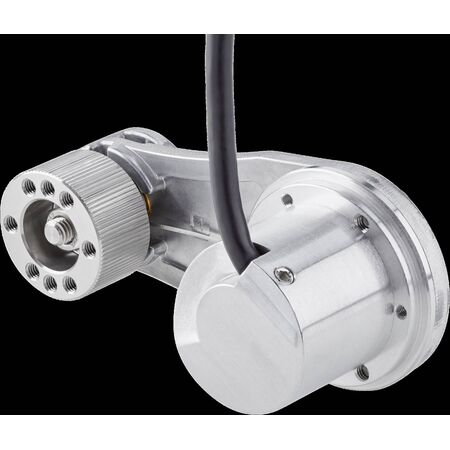

Measuring Wheel Encoder MWS075 | Incremental Communication | Adjustable Contact Pressure | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise dynamic linear surface movement measurement, featuring an incremental communication interface and manually adjustable contact pressure up to 15 N. Ideal for industrial motion control and automation systems, this encoder offers flexible mounting options and a durable design that minimizes waste and enhances efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | Incremental Communication | Adjustable Contact Pressure | Compact Design | by SICK
Brand: SICK
SKU: 1146299
Alternatively Known As: Measuring wheel encoder, linear surface movement sensor, incremental encoder wheel
Technical Specifications
- Communication interface: Incremental
- Communication interface detail: HTL, Push pull
- Programmable/configurable: No
- Singleturn version
- Connection: Cable with male connector
- Spring arm travel: ±5 mm
- Maximum contact pressure: 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N
- Supports all available encoder interfaces
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and accurate measurement.
Applications
- Industrial sectors requiring precise dynamic linear surface movement measurement
- Motion control systems
- Automation and positioning systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Accurate measurement reduces energy waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty details.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
