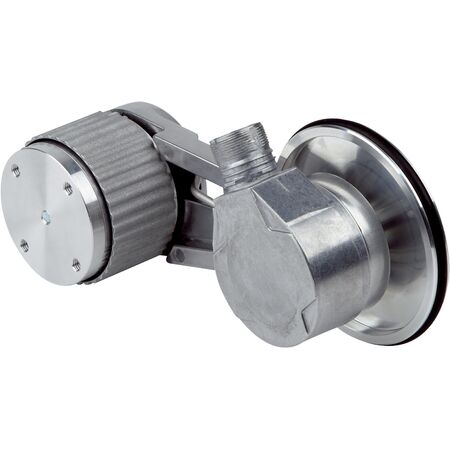

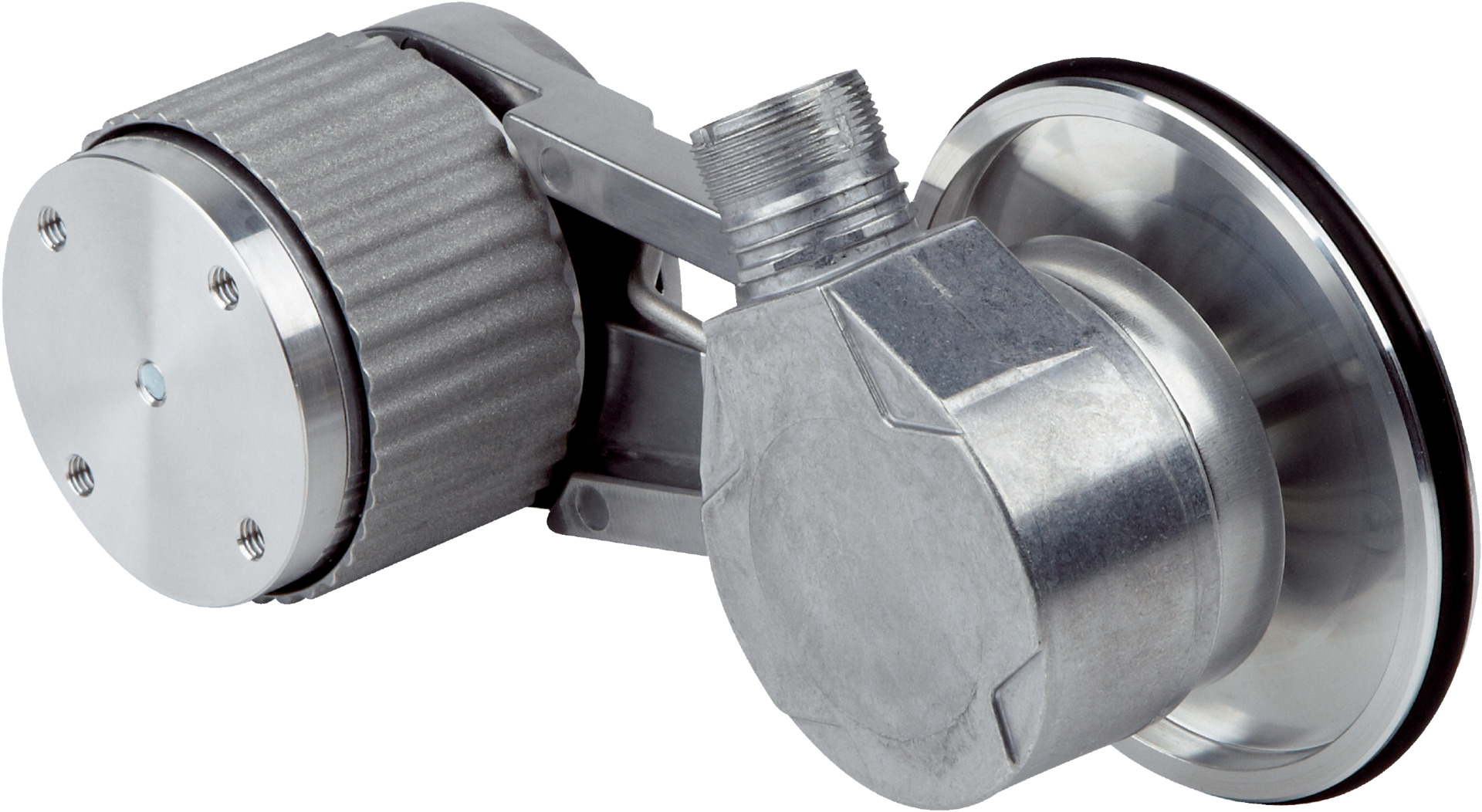

Measuring Wheel Encoder MWS120-12B33A36000 | 36,000 Pulses/Rev | 0.02 mm Resolution | by SICK
The Measuring Wheel Encoder MWS120-12B33A36000 offers high precision with 36,000 pulses per revolution and a measuring increment of just 0.02 mm per pulse. Designed for industrial automation, it features a robust aluminum wheel and stainless steel spring, ensuring durability and reliability in demanding environments. Ideal for position and speed measurement in manufacturing and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Pulses per revolution: 36,000
- Measuring increment (resolution): 0.02 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Short-circuit protection: Yes
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: O-ring NBR70
- Mounting: Measuring wheel mounted at the front
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.3 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^10 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 0.5 kg
