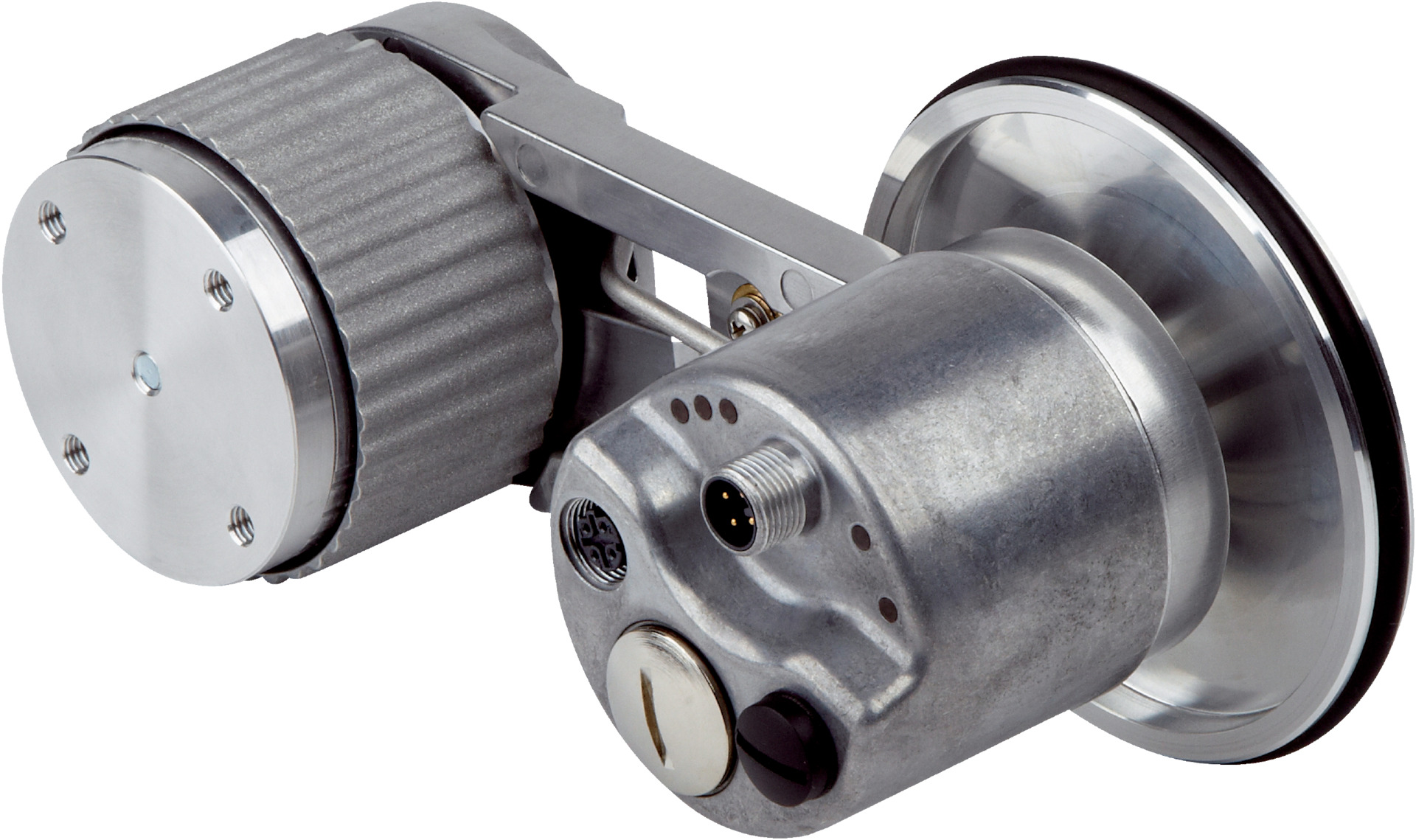

Measuring Wheel Encoder MWS120 | 18 Bit Resolution | PROFINET Interface | Durable Knurled Wheel | by SICK
The Measuring Wheel Encoder MWS120 offers high precision with an 18-bit resolution and a measuring increment of just 0.0008 mm per pulse. Ideal for industrial automation and material handling, this encoder features a durable knurled polyurethane wheel and a PROFINET communication interface, ensuring reliable performance in various applications. With a wide operating temperature range and long bearing lifetime, it's built for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Max. resolution: 18 bit (262,144 steps per revolution)
- Measuring increment: 0.0008 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: PROFINET
- Programmable/configurable: Yes
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V DC to 30 V DC
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: Knurled polyurethane
- Mounting: Measuring wheel mounted at the front
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Bearing lifetime: 3.0 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 180mm x 120mm
- Weight: 1.2 kg
Key Features
- High resolution with 18 bit (262,144 steps) per revolution
- Measuring increment of 0.0008 mm per pulse
- Repeatability less than 0.1 mm
- PROFINET communication interface with programmable/configurable options
- Durable knurled polyurethane measuring wheel
- Spring arm mechanism with stainless steel spring element and aluminum components
- Wide operating temperature range from -30 °C to +80 °C
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Service life of spring element greater than 1.5 million cycles
- Reverse polarity protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with PROFINET systems and industrial sensor mounting to ensure accurate measurement and system integration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High precision measurement reduces waste and improves process efficiency
- Durable materials extend product life, reducing replacement frequency
- Low power consumption electronics contribute to energy savings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

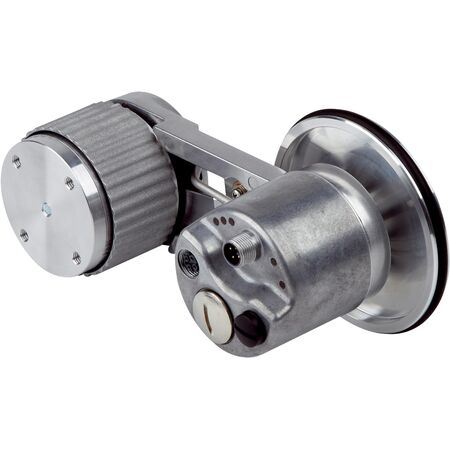

The SICK MWS120-15N1NF18X00 Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
