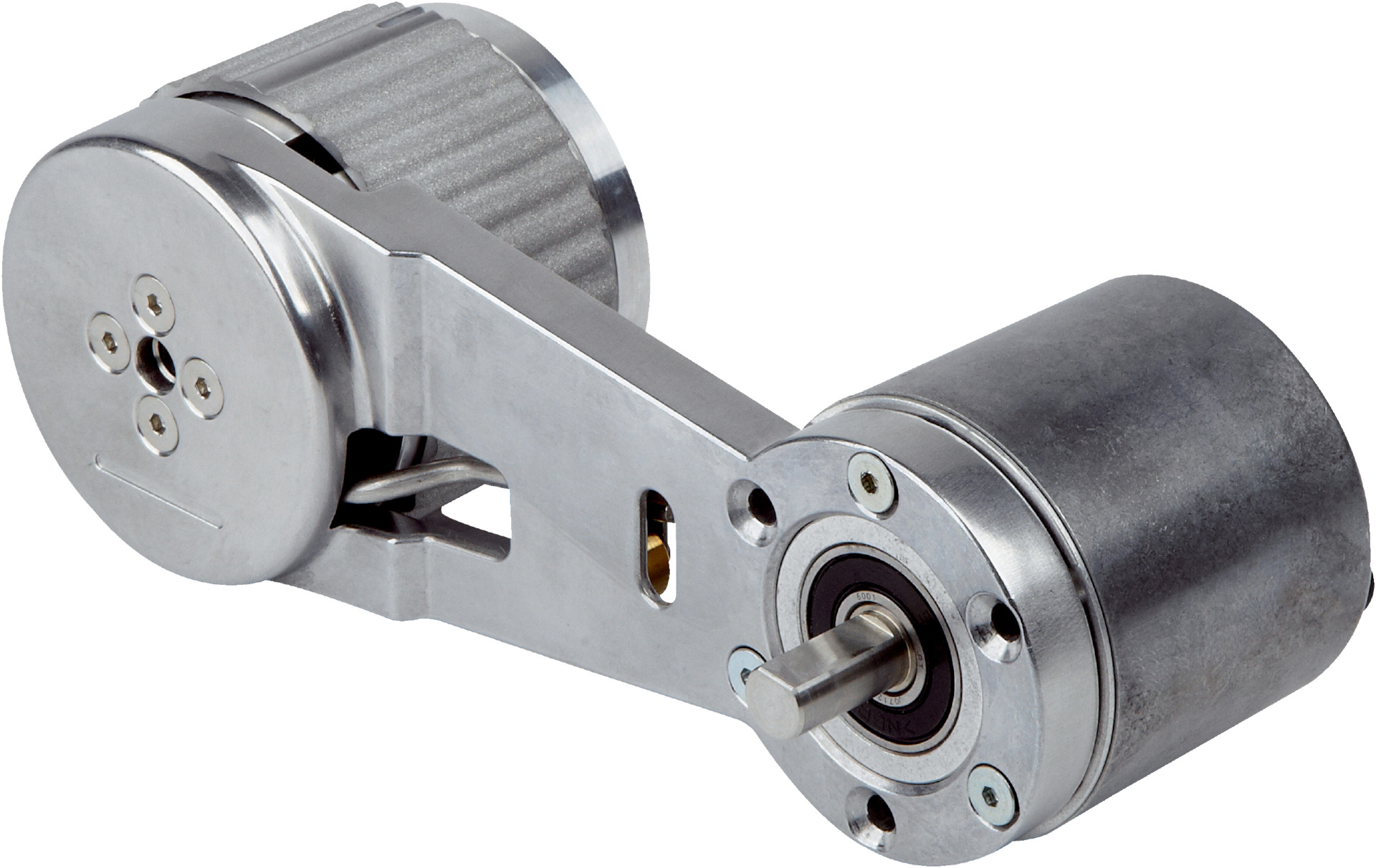

Measuring Wheel Encoder MWS120 | 262,144 Steps/Rev | EtherNet/IP Interface | Robust Aluminum & Stainless Steel | by SICK
The Measuring Wheel Encoder MWS120 is engineered for precision in industrial automation, featuring an impressive 262,144 steps per revolution and EtherNet/IP communication for seamless integration. With a robust aluminum wheel and stainless steel spring, it ensures durability and reliability in demanding applications like conveyor monitoring and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Repeatability: < 0.1 mm
- Communication interface: EtherNet/IP™
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Power consumption: ≤ 3 W
- Supply voltage: 10 V DC to 30 V DC
- Reverse polarity protection: Yes
- Measuring wheel surface: O-ring NBR70
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Bearing lifetime: 3.0 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: –30 °C to +80 °C
- Storage temperature range: –40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- EtherNet/IP communication interface for seamless integration
- Programmable and configurable for versatile applications
- Robust mechanics with aluminum measuring wheel and stainless steel spring element
- Low power consumption of ≤ 3 W
- Wide operating temperature range from –30 °C to +80 °C
- Reverse polarity protection included
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Spring arm mechanism with a service life of over 1.5 million cycles
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial automation equipment and EtherNet/IP communication standards.
Applications
- Industrial automation for precise measurement and positioning
- Conveyor belt monitoring and control
- Material handling systems
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

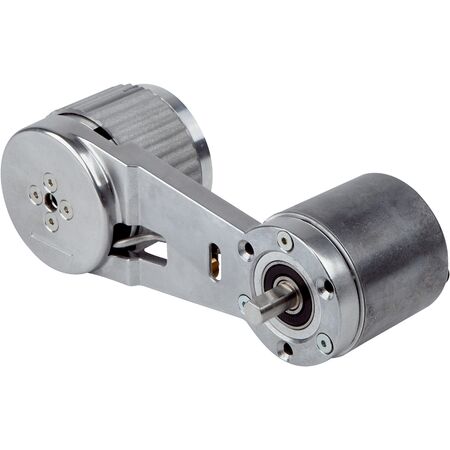

The SICK MWS120-00N1IF18x00 Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and material handling applications requiring precise position feedback.
