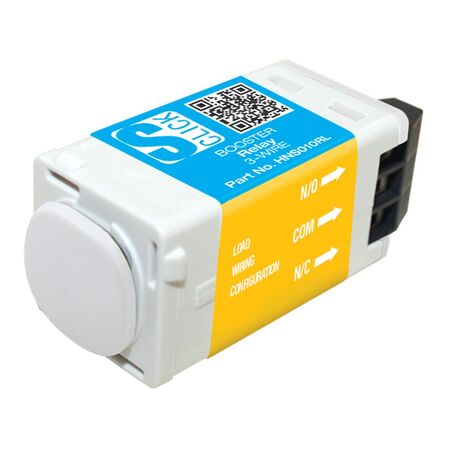

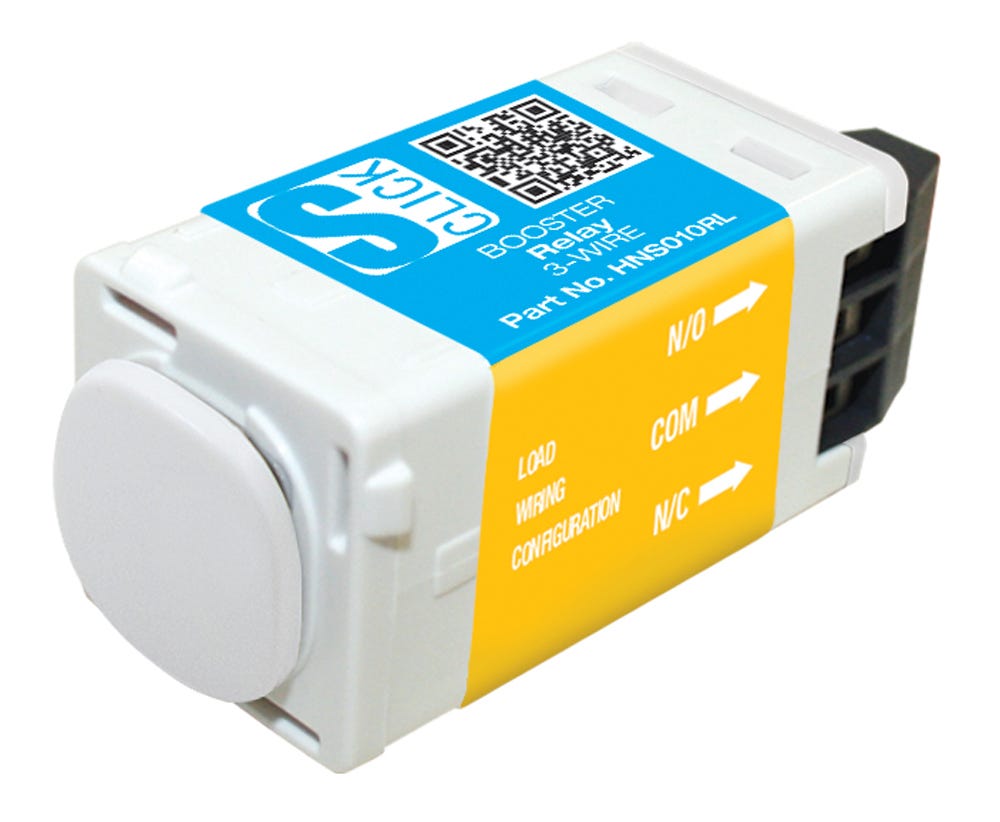

Mech Booster Relay 3-Wire 240V 10A | Boosts Current to 10A | Compatible with S-Click Products | by Cabac
The Mech Booster Relay 3-Wire 240V 10A is designed to enhance the current capacity of circuits controlled by external devices, boosting up to 10A. Ideal for large pool pumps, electrical motors, and timed power points, this relay is compatible with S-Click 3-wire products and offers flexible mounting options. Ensure professional installation for optimal performance and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mech Booster Relay 3-Wire 240V 10A | Boosts Current to 10A | Compatible with S-Click Products | by Cabac
Brand: Cabac
SKU: HNS010RL
Alternatively Known As: Booster Relay, 3-Wire Relay, Mech Booster Relay, 10A Relay
Technical Specifications
- Voltage: 240V
- Current Capacity: 10A
- Compatible with S-Click 3-wire products (HNS440TM, HNS450TM, HNS460SW)
- Mounting: Dual wall plate or cable tie for in-wall installation
- Switch Type: Normally open or normally closed
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- Boosts current capacity of a circuit controlled by an external switching device to 10A
- Compatible with S-Click 3-wire products such as HNS440TM, HNS450TM, and HNS460SW
- Can be normally open or normally closed
- Includes covers to fit Clipsal and HPM wall plates
- Dual wall plate mounting or cable tie mounting for in-wall installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Large pool pumps
- Electrical motors
- Timed power points
- Fans and iron core ballasts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling controlled switching of high current devices
- Reduces electrical waste by extending the life of switching devices
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Mech Booster Relay 3-Wire 240V 10A is available now for immediate purchase. Ideal for use with pool pumps, motors, and timed power points.
