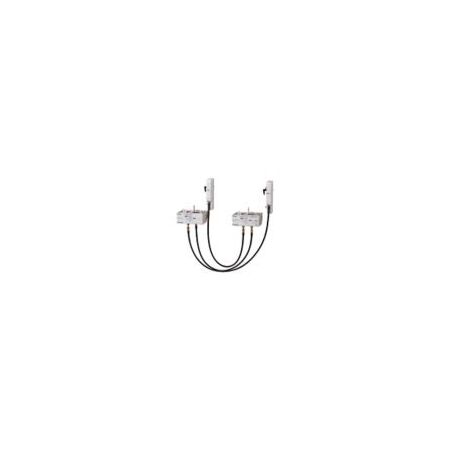

Mechanical Interlock Accessory for NZM3 | Corrosion Resistant | Thermal Stability | UV Resistant by Eaton
Mechanical interlock accessory for NZM3 circuit breakers, designed for remote operation and compatibility with Eaton Moeller NZM3 and NZM3-4 frames. Ideal for electrical switchgear assemblies, it ensures safety and coordination in industrial and commercial systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mechanical Interlock Accessory for NZM3 | Corrosion Resistant | Thermal Stability | UV Resistant by Eaton
Brand: Eaton
SKU: Y7-104545
Alternatively Known As: Eaton NZM3 Mechanical Interlock, NZM3-XMVR Circuit Breaker Accessory, Molded Case Circuit Breaker Interlock
Technical Specifications
- Type: Mechanical interlock accessory
- Frame: NZM3
- Number of normally closed contacts: 0
- Number of normally open contacts: 0
- Compatibility: NZM3(-4) N(S)3(-4) Mechanical interlock N3 N3-4 NS3 NZM3 NZM3-4 NZM3-NA
- Meets product standard requirements for corrosion resistance, thermal stability, resistance to UV radiation
- Panel builder responsible for temperature rise, short-circuit rating, electromagnetic compatibility, and electrical connections
- Dimensions (H x L x W): 100mm x 260mm x 220mm
- Weight: 0.8 kg
Key Features
- Mechanical interlock accessory for remote operator
- Compatible with Eaton Moeller NZM3 and NZM3-4 frame circuit breakers
- Designed for mounting beside one another for 2 switches of the same or next frame size
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder familiar with Eaton NZM series circuit breakers and interlock accessories.
Applications
- Electrical switchgear assemblies requiring mechanical interlock for remote operator
- Industrial and commercial electrical distribution systems
- Panel builder applications for circuit breaker safety and coordination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports safe electrical system operation reducing risk of faults and electrical hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller NZM3-XMVR mechanical interlock accessory is available for immediate purchase, ideal for electrical switchgear and panel builder applications.
