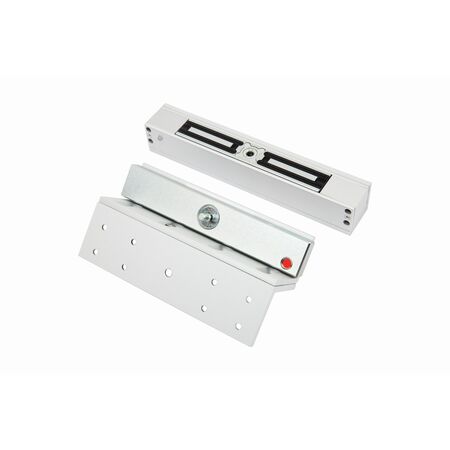

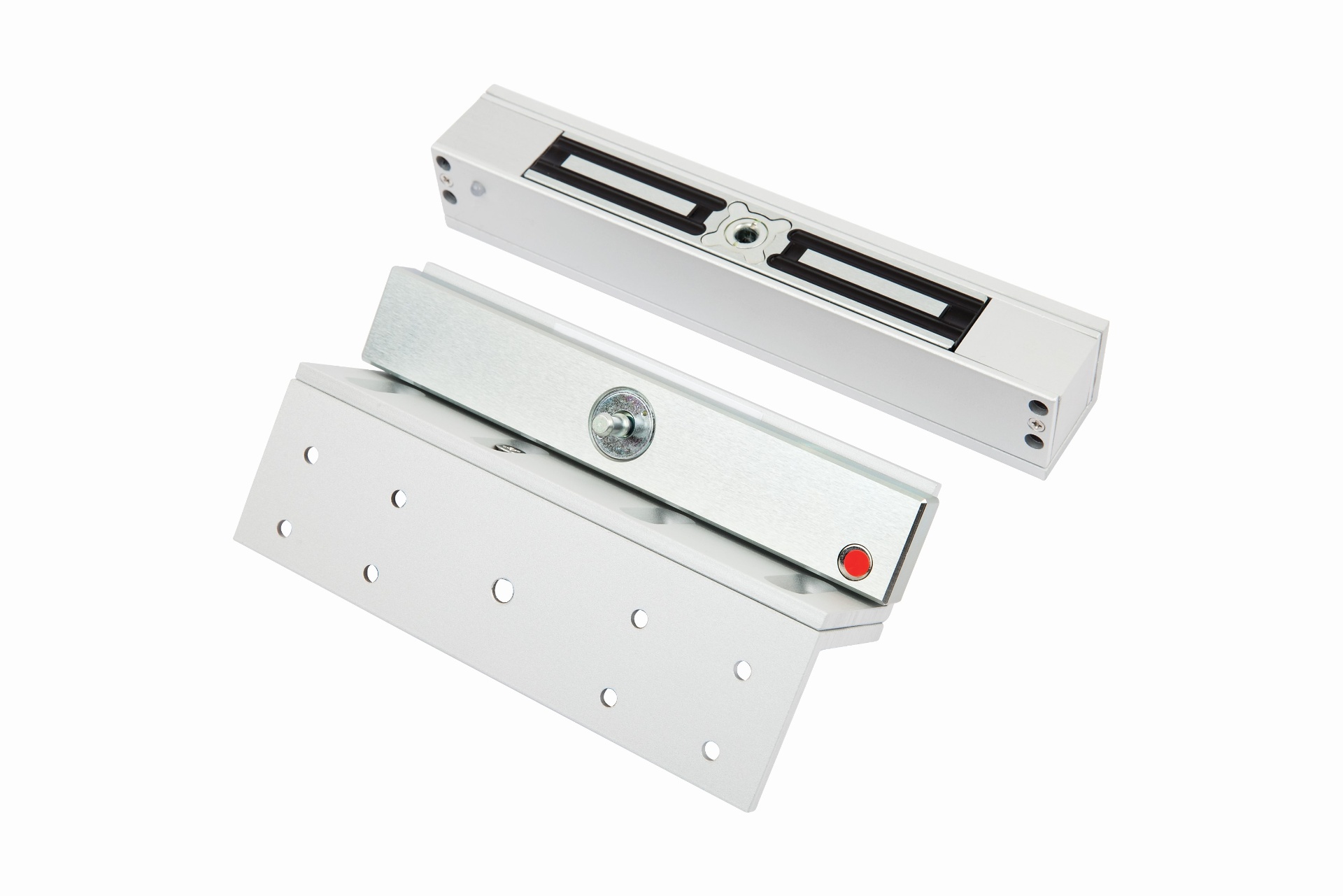

Mechanical Maglock LOX MML2400LZ | 1000kg Holding Strength | Dual Voltage 12/24VDC | Fire Rated | by Dicker Data
The Mechanical Maglock LOX MML2400LZ offers a robust 1000kg holding strength and dual voltage operation of 12/24VDC, making it ideal for secure access control in commercial and industrial settings. With a fire rating of up to 4 hours and a tested cycle life of 750,000, this maglock ensures reliability and safety for inward opening doors, equipped with lock and door status sensors for enhanced monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mechanical Maglock LOX MML2400LZ | 1000kg Holding Strength | Dual Voltage 12/24VDC | Fire Rated | by Dicker Data
Brand: Dicker Data
SKU: MML2400LZ
Alternatively Known As: Mechanical Magnetic Lock, Maglock, Inward Opening Maglock, Security Door Lock, Magnetic Door Lock
Technical Specifications
- Holding Strength: Up to 1000kg
- Tested Cycles: 750,000
- Voltage/Current: Dual Voltage 12/24VDC; 12VDC = 350mA, 24VDC = 175mA
- Lock Status Sensor: LSS (Hall Effect)
- Door Status Sensor: DSS (Reed Switch)
- LED Indicator: Shows locked/unlocked status
- Operational Temperature: -20°C to 60°C
- Fire Rating: Up to 4 hours as per Australian Standard
- Dimensions (H x L x W): 50mm x 50mm x 250mm
- Weight: 4 kg
Key Features
- Single mechanical magnetic locking device for inward opening doors
- Holding strength up to 1000kg, tested to 750,000 cycles
- Dual voltage operation: 12/24VDC with current draw of 350mA at 12VDC and 175mA at 24VDC
- LSS Lock Status Sensor (Hall Effect) for monitoring lock status
- DSS Door Status Sensor (Reed Switch) for door position monitoring
- Small LED light indicates locked or unlocked status
- Operational temperature range from -20°C to 60°C
- Up to 4 hour fire rated to Australian Standard
Professional Installation Requirements
- Professional installation by a qualified security systems technician or licensed electrician is recommended to ensure compliance with fire safety and electrical standards.
Applications
- Security for inward opening doors in commercial and industrial buildings
- Access control systems requiring high holding strength magnetic locks
- Fire-rated door locking solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Fire rating compliance to relevant Australian Standards
Environmental Benefits
- Low power consumption with dual voltage options reduces energy use
- Durable design minimizes replacement frequency and waste
Warranty Information
5 year warranty with 1 year warranty for electrical components.
Available Now
The LOX MML2400LZ Mechanical Maglock is available for immediate purchase, ideal for secure access control in commercial and industrial applications.
