Mechanical Shear 95-240 SQMM | Tinned Aluminium Body | Compatible with Class 1, 2, 5 Conductors | Flush Bolt Breaking by Cabac

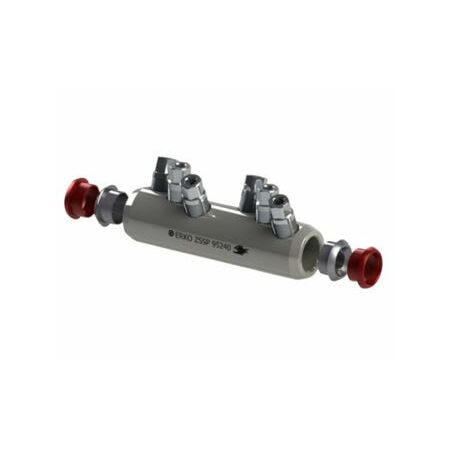

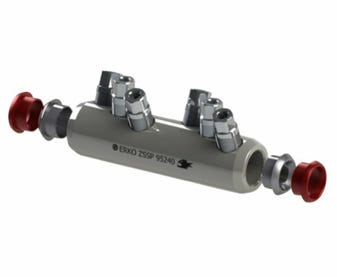

The Cabac Link Tinned Mechanical Shear 95-240 SQMM is a high-performance aluminium mechanical link designed for wide cross-section conductors, ensuring reliable and damage-free cable connections for copper and aluminium conductors in electrical power systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LINK TINNED MECHANICAL SHEAR 95-240 SQMM
Brand: Cabac
SKU: ZSSP-95240
Alternatively Known As: Mechanical Shear Link, Tinned Aluminium Mechanical Connector, Cable Mechanical Link, Shear Bolt Connector
Technical Specifications
- Suitable for aluminium and copper conductors class 1, 2, and 5
- Cross-section range: 10 to 1000 mm²
- Tinned aluminium body
- Shearing bolts break at specified torque flush to surface of link body
- Shearing bolt tip rotates to reduce possible damage to conductor
- Complies with IEC, EN 61238-1-3 2018
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Bolt breaking place is repeatable and flush with the outer surface of the connector body
- Compatible with copper and aluminium class 1, 2, and 5 connectors
- No damage to cable conductors during assembly
- Higher resistance to clamping force relaxation
- Reduction of partial discharges in connectors
- Significant reduction in the number of connector-pressing unit sets compared to traditional solutions
- Repeatability of cable connection system in terms of required clamping force
- Reduction of friction forces during installation, preventing damage to cable conductors
- Allows connection of class 5 flexible conductors without screw fittings
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper torque application and compliance with safety standards.
Applications
- Electrical power connectivity for copper and aluminium conductors
- Suitable for class 1, 2, and 5 conductors in industrial and commercial electrical installations
- Used in mechanical connections for cables ranging from 10 to 1000 mm² cross-section
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by enabling durable and reliable cable connections
- Minimizes damage to conductors, extending cable life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Link Tinned Mechanical Shear 95-240 SQMM is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable mechanical cable connections.
