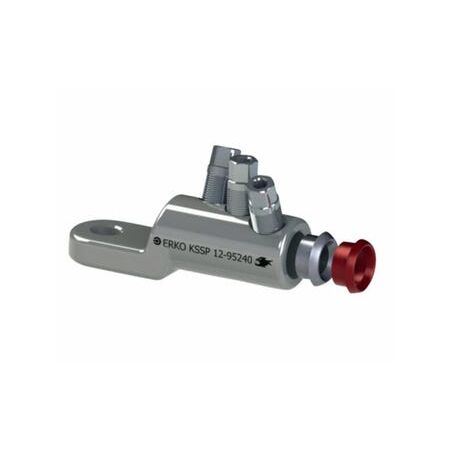

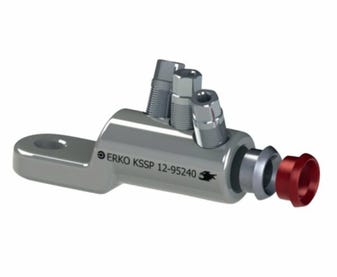

Mechanical Shear Lug 16-95 mm² | Tinned Aluminium | Corrosion Resistant & Damage-Free Connection by Cabac
The Cabac LUG TINNED MECHANICAL SHEAR 16-95 SQMM is a tinned aluminium mechanical lug designed for reliable and damage-free connection of copper and aluminium conductors, suitable for a wide range of electrical power connectivity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LUG TINNED MECHANICAL SHEAR 16-95 SQMM
Brand: Cabac
SKU: KSSP-12-1695
Alternatively Known As: Mechanical Shear Lug, Tinned Aluminium Lug, Cable Lug Connector, Shear Bolt Lug
Technical Specifications
- Suitable for copper and aluminium conductors class 1, 2, and 5
- Cross-section range: 16-95 mm²
- Tinned aluminium body for corrosion resistance
- Shearing bolts break at specified torque flush to surface of lug body
- Shearing bolt rotates to reduce possible damage to conductor
- Complies with IEC, EN 61238-1-3 standards
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Bolt breaking place is repeatable flush with the outer surface of the connector body
- Compatible with copper and aluminium class 1, 2, and 5 connectors from 10 to 1000 mm²
- No damage to cable conductors during assembly
- Higher resistance to clamping force relaxation
- Reduction of partial discharges in connectors
- Significant reduction in the number of connector-pressing unit sets compared to traditional solutions
- Repeatability of cable connection system in terms of required clamping force
- Reduction of friction forces during installation, preventing damage to cable conductors
- Allows connection of class 5 flexible conductors without screw fittings
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper torque and secure connection according to standards.
Applications
- Electrical power connectivity for copper and aluminium conductors
- Suitable for class 1, 2, and 5 conductors in industrial and commercial electrical installations
- Used in cable connection systems requiring reliable clamping force and minimal conductor damage
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by enabling repeatable and reliable connections, minimizing the need for replacements
- Supports use of aluminium conductors which are lighter and have a lower environmental footprint than copper
- Prevents damage to conductors, extending cable life and reducing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac LUG TINNED MECHANICAL SHEAR 16-95 SQMM is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and damage-free conductor connections.
