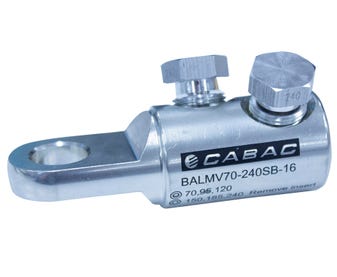

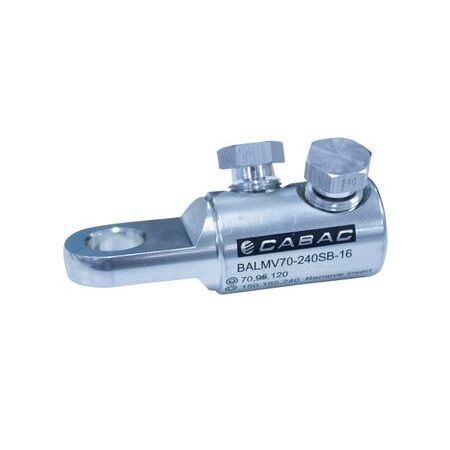

Mechanical Shear Lug 70-240 mm² | Tin Plated | Simple Bolt Design & Low Resistance | 36kV by Cabac
The Cabac LUG TINNED MECH. SHEAR 70-240 SQMM SHORT 36kV is a tin-plated aluminium mechanical shear lug designed for low voltage applications up to 36kV, suitable for aluminium and copper conductors with a simple bolt installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LUG TINNED MECH. SHEAR 70-240 SQMM SHORT 36kV
Brand: Cabac
SKU: BALMV240SB-16
Alternatively Known As: Mechanical Shear Lug, Tin Plated Aluminium Lug, Bolted Aluminium Lug, Shear Bolt Connector
Technical Specifications
- Conductor Range: 70-240 mm²
- Conductor Bolt Diameter: 20 mm
- Conductive Material: 99.6% pure Aluminium
- Set Screw Material: Brass alloy tin plated
- Operating Temperature: -20 to +140 °C
- Tensile Strength: 20 MPa
- Shear Head Bolts: Brass alloy tin plated
- Designed for solid and stranded, sector or circular aluminium or copper cables
- Inner lug barrel grooved surface to break oxide layers for low resistance connection
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.3 kg
Key Features
- Simple bolt design using shear bolt technology
- Performs better than crimped joints due to grooved inner surface of lug barrel
- Tin plated for compatibility with aluminium and copper conductors
- Chamfered edges to eliminate sharp corners
- Installation requires only an allen key
- Uses standard A/F 28.4 hex crimp die (HT-240/300AL)
Professional Installation Requirements
- Installation requires only an allen key; recommended to be installed by a qualified electrical professional to ensure correct torque and safety.
Applications
- Low voltage electrical connections up to 36kV
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- PowerJoint elbows and other electrical power connectivity applications
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Tin plating allows for mixed conductor use reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac LUG TINNED MECH. SHEAR 70-240 SQMM SHORT 36kV is available for immediate purchase, ideal for electrical power connectivity in low voltage applications.
