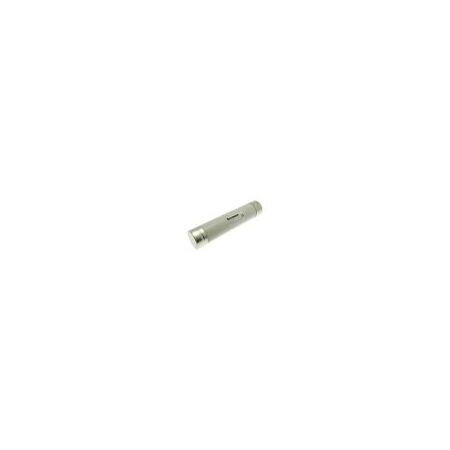

Medium Voltage Air Fuse 12kV 56A | 40kA Breaking Capacity | Clip-in Mounting | Eaton
The 12kV 56A medium voltage air fuse is designed for reliable overcurrent protection in industrial and commercial electrical systems. With a high breaking capacity of 40kA and easy clip-in mounting, it ensures safety and compliance in medium voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage Air Fuse 12kV 56A | 40kA Breaking Capacity | Clip-in Mounting | Eaton
Brand: Eaton
SKU: 12BFGHA56
Alternatively Known As: Medium Voltage Air Fuse, 12kV Air Fuse, 56 Amp Air Fuse, Eaton Bussmann Air Fuse, Back-up Air Fuse with Striker
Technical Specifications
- Amperage Rating: 56 A
- Voltage Rating: 12 kV AC
- Breaking Capacity: 40 kA
- Performance Category: Back-up according to IEC 60282-1
- Rated Frequency: 50 Hz
- Resistance: 14.6 ohms
- Fuse Indicator: With Striker
- Construction Size: 76 x 359 mm
- Mounting Method: Clip-in
- Used With: A3354730 Fuse clip
- Standard: British Standard BS 2692-1
- Dimensions (H x L x W): 76.2mm x 359mm x 76mm
- Weight: 4.2 kg
Key Features
- 56 A amperage rating suitable for medium voltage applications
- 12 kV AC voltage rating
- Back-up fuse with high breaking capacity of 40 kA
- Includes striker for fuse indication
- Clip-in mounting method for easy installation
- Complies with British Standard BS 2692-1
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional experienced with medium voltage systems to ensure safety and compliance.
Applications
- Medium voltage electrical systems requiring reliable overcurrent protection
- Industrial and commercial electrical installations
- Back-up protection in electrical distribution networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety, reducing risk of electrical faults and associated environmental hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 12KV 56AMP 3" 'A' Air Fuse is available for immediate purchase, ideal for medium voltage electrical protection applications.
