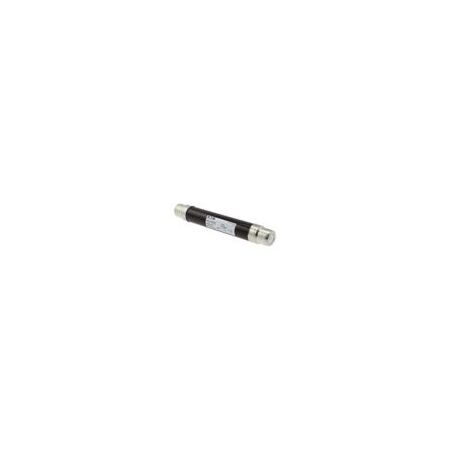

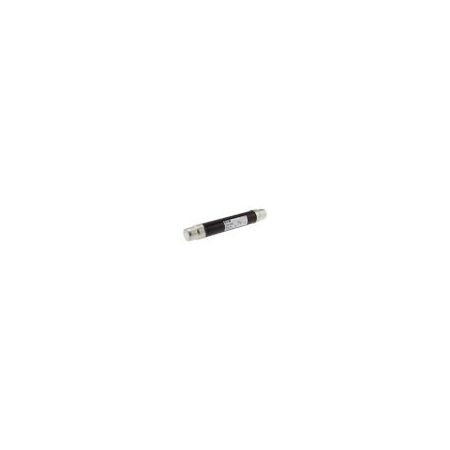

Medium Voltage DIN Fuse 12kV 16A | Back-up Type with Striker | High Breaking Capacity | Brown by Eaton
This medium voltage DIN fuse features a 12kV AC voltage rating and a 16A amperage rating—ideal for transformer protection in industrial and commercial settings. Built for safety and reliability, it includes a striker indicator and a high breaking capacity of 63 kA, making it suitable for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 12kV 16A | Back-up Type with Striker | High Breaking Capacity | Brown by Eaton
Brand: Eaton
SKU: 12TDLEJ16
Alternatively Known As: 12kV DIN Fuse, Medium Voltage Resin Seal Fuse, 16 Amp Transformer Fuse, Eaton TDLEJ Fuse
Technical Specifications
- Amperage Rating: 16 A
- Voltage Rating: 12 kV AC
- Fuse Size: 51 x 292 mm
- Breaking Capacity: 63 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Rated Frequency: 50 Hz
- Resistance: 54.6 Ohms
- Watt Losses: 16 W
- Fuse Diameter: 51 mm
- Interrupt Rating: 63 kAIC
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Color: Brown
- Class: Class back-up
- Barrels: 1
- Pre arc (I2T): 2.6 x 100
- Special Features: Back-up, Transformer protection, Indoor or outdoor use
- Fuse Type: TDLEJ
- Dimensions (H x L x W): 54mm x 292mm x 51mm
- Weight: 1.5 kg
Key Features
- Medium voltage DIN fuse with 16 A amperage rating
- 12 kV AC voltage rating
- Back-up fuse type with striker indicator
- Bolt-on construction type with clip-in mounting method
- High breaking capacity of 63 kA
- Suitable for indoor or outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal construction reduces environmental contamination risk
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton 12KV 16Amp 2" DIN Brown Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and commercial electrical systems.
