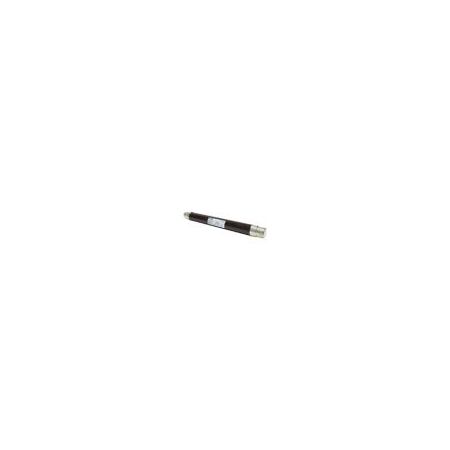

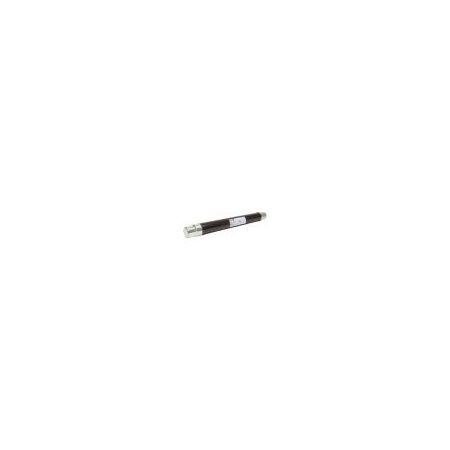

Medium Voltage DIN Fuse 24kV 16A | Back-Up with Striker Indicator | Brown Resin Seal by Eaton
This medium voltage DIN fuse offers a 16A amperage rating and 24kV AC voltage, making it ideal for transformer protection in industrial settings. Built for safety with a back-up feature and striker indicator, it ensures reliable performance and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 24kV 16A | Back-Up with Striker Indicator | Brown Resin Seal by Eaton
Brand: Eaton
SKU: 24TDMEJ16
Alternatively Known As: Medium Voltage DIN Fuse, 24kV Resin Seal Fuse, 16 Amp Transformer Fuse, Eaton TDMEJ Fuse
Technical Specifications
- Amperage Rating: 16 A
- Voltage Rating: 24 kV AC
- Fuse Size: 51 x 442 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Rated Frequency: 50 Hz
- Resistance: 109 Ohms
- Watt Losses: 34 W
- Mounting Method: Clip-in
- Construction Type: Bolt-on
- Color: Brown
- Interrupt Rating: 50 kAIC
- Fuse Type: TDMEJ
- Dimensions (H x L x W): 54mm x 442mm x 51mm
- Weight: 2.221 kg
Key Features
- Medium voltage fuse-link with 16 A amperage rating
- 24 kV AC voltage rating
- Back-up fuse with striker indicator
- Bolt-on construction type with clip-in mounting method
- Breaking capacity of 50 kA
- Suitable for air installation technique
- Standard DIN compliant
- Class back-up fuse type
- Single barrel design
- Brown color resin seal
- Watt losses of 34 W
- Resistance of 109 Ohms
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional familiar with medium voltage equipment and safety standards.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal protects against environmental factors, extending product life and reducing waste.
- High breaking capacity enhances system safety, preventing damage and reducing downtime.
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton 24KV 16Amp 2" DIN Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and utility applications.
