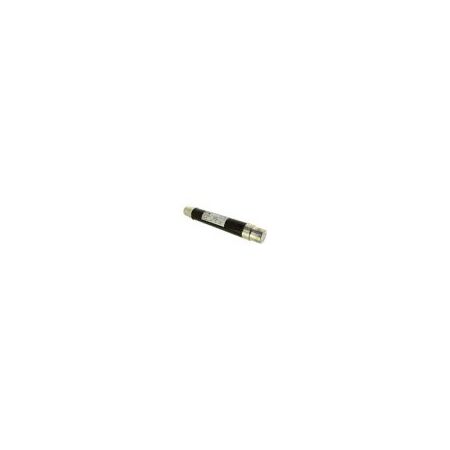

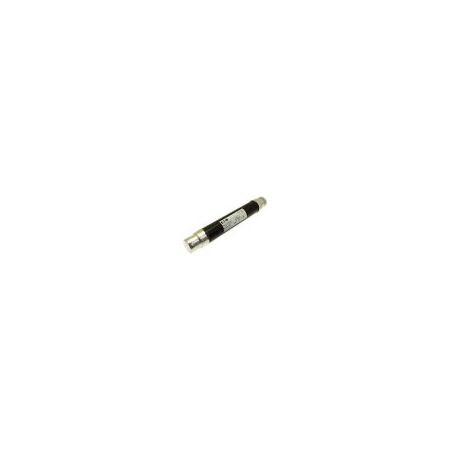

Medium Voltage DIN Fuse 25A | 12kV AC | High Breaking Capacity & Brown Resin Seal | Eaton
This medium voltage DIN fuse features a 25A amperage rating and a 12kV AC voltage rating—ideal for transformer protection in industrial settings. Built for durability with a brown resin seal and high breaking capacity of 63kA, it ensures reliable performance for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 25A | 12kV AC | High Breaking Capacity & Brown Resin Seal | Eaton
Brand: Eaton
SKU: 12TDLEJ25
Alternatively Known As: 12kV DIN Fuse, 25 Amp Resin Seal Fuse, Medium Voltage DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 25 A
- Voltage Rating: 12 kV AC
- Fuse Size: 51 x 292 mm
- Breaking Capacity: 63 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Rated Frequency: 50 Hz
- Resistance: 31.2 Ohms
- Watt Losses: 24 W
- Fuse Diameter: 51 mm
- Interrupt Rating: 63 kAIC
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Color: Brown
- Fuse Type: TDLEJ
- Dimensions (H x L x W): 54mm x 292mm x 51mm
- Weight: 1.57 kg
Key Features
- Medium voltage DIN fuse with 25 A amperage rating
- 12 kV AC voltage rating
- Back-up fuse with striker indicator
- Bolt-on construction type with clip-in mounting method
- High breaking capacity of 63 kA
- Brown resin seal for durability
- Suitable for indoor or outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal reduces environmental contamination risk
- Long service life reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from Eaton or authorized distributors.
Available Now
The Eaton 12KV 25Amp 2" DIN Brown Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and utility applications.
