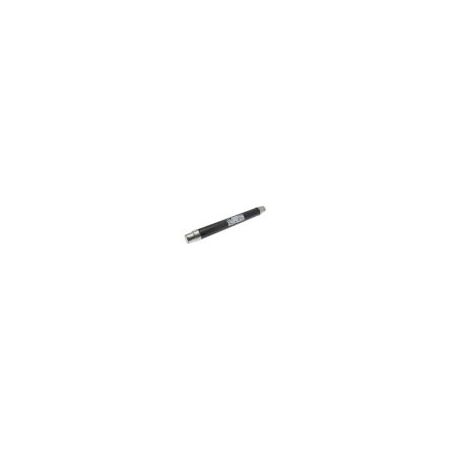

Medium Voltage DIN Fuse 25A | 24kV AC | Back-up with Striker | Clip-in Mounting | Brown by Eaton
This medium voltage DIN fuse features a 25A amperage rating and 24kV AC voltage rating—ideal for transformer protection in industrial and utility applications. Built for durability with a back-up design and clip-in mounting, it ensures reliable performance indoors and outdoors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 25A | 24kV AC | Back-up with Striker | Clip-in Mounting | Brown by Eaton
Brand: Eaton
SKU: 24TDMEJ25
Alternatively Known As: Medium Voltage DIN Fuse, Resin Seal Fuse 24kV, 25 Amp DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 25 A
- Voltage Rating: 24 kV AC
- Fuse Size: 51 x 442 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Resistance: 62.4 Ohms
- Watt Losses: 49 W
- Rated Frequency: 50 Hz
- Class: Back-up
- Barrels: 1
- Pre arc (I2T): 8.1 x 100
- Color: Brown
- Interrupt Rating: 50 kAIC
- Installation Technique: Air
- Special Features: Back-up, Transformer protection, Indoor or outdoor use
- Dimensions (H x L x W): 54mm x 442mm x 51mm
- Weight: 2.25 kg
Key Features
- Medium voltage fuse-link with 25 A amperage rating
- 24 kV AC voltage rating
- Back-up fuse with striker for indication
- Bolt-on construction with clip-in mounting method
- Breaking capacity of 50 kA
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional familiar with medium voltage equipment and safety standards.
Applications
- Primary side transformer protection
- Indoor or outdoor transformer protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal construction reduces environmental contamination risk
- Long service life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 24KV 25Amp 2" DIN Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and utility applications.
