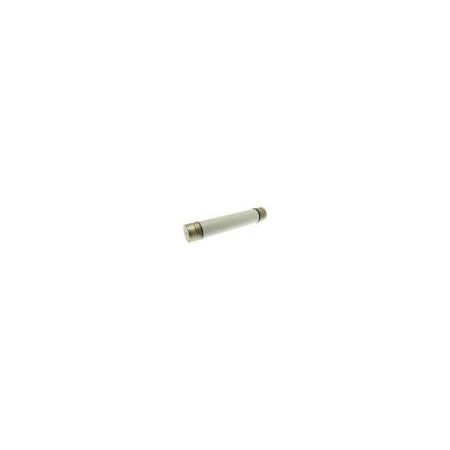

Medium Voltage Oil Fuse 12kV 125A | 40kA Breaking Capacity | Striker Indicator | Eaton
This medium voltage oil fuse rated at 12kV and 125A is ideal for overcurrent protection in industrial electrical systems. With a high breaking capacity of 40kA and equipped with a striker for indication, it ensures reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage Oil Fuse 12kV 125A | 40kA Breaking Capacity | Striker Indicator | Eaton
Brand: Eaton
SKU: 12OLGMA125
Alternatively Known As: Medium Voltage Oil Fuse, 12kV Oil Fuse Link, 125 Amp Oil Fuse, Eaton Bussmann Oil Fuse
Technical Specifications
- Amperage Rating: 125 A
- Voltage Rating: 12 kV AC
- Breaking Capacity: 40 kA
- Performance Category: Back-up according to IEC 60282-1
- Fuse Indicator: With striker
- Construction Size: 63.5 x 359 mm
- Standards: British Standard BS 2692-1, IEC 60282-1
- Dimensions (H x L x W): 72mm x 394mm x 218mm
- Weight: 2.61 kg
Key Features
- Medium voltage oil fuse-link rated at 125 A and 12 kV AC
- Back-up fuse with high breaking capacity of 40 kA
- Equipped with a striker for fuse indication
- Complies with British Standard BS 2692-1 and IEC 60282-1
- Compact construction size of 63.5 x 359 mm
Professional Installation Requirements
- Installation must be performed by a qualified electrical professional experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Medium voltage electrical systems requiring overcurrent protection
- Industrial electrical installations
- Power distribution networks
- Backup protection in electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Oil fuse technology provides reliable protection reducing electrical faults and potential environmental hazards
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton 12KV 125A 2.5" Oil Fuse is available for immediate purchase, ideal for medium voltage electrical protection in industrial and power distribution applications.
