Trade Discount 20%

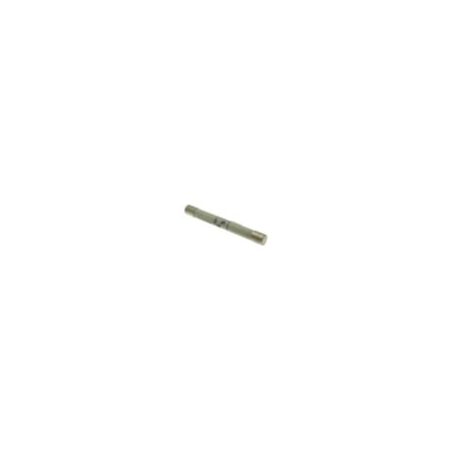

Medium Voltage VT Fuse 12kV AC | 1A Amperage | IEC 60282-1 Compliant | Compact Design by Eaton
This medium voltage VT fuse is rated at 12kV AC with a 1A amperage, ideal for back-up protection in industrial and commercial electrical systems. Built for safety and compliance, it features a compact design and is certified to IEC 60282-1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage VT Fuse 12kV AC | 1A Amperage | IEC 60282-1 Compliant | Compact Design by Eaton
Brand: Eaton
SKU: 12VTDNN1
Alternatively Known As: Medium Voltage VT Fuse, 12kV Back-up Fuse, Eaton Bussmann Fuse 12VTDNN1
Technical Specifications
- Product Name: Eaton Bussmann series medium auxiliary fuse
- Catalog Number: 12VTDNN1
- Amperage Rating: 1 A
- Voltage Rating: 12 kV AC
- Performance Category: Back-up according to IEC 60282-1
- Class: Class back-up
- Construction Size: 197 x 22.2 mm
- Certifications: IEC60282-1, KEMA
- Standard: British Standard
- Dimensions (H x L x W): 22.2mm x 197mm x 22.2mm
- Weight: 0.202 kg
Key Features
- Medium voltage VT fuse-link rated at 12 kV AC
- Amperage rating of 1 A for precise circuit protection
- Back-up fuse type compliant with IEC 60282-1 standards
- Compact construction size of 197 x 22.2 mm
- Certified to IEC60282-1 and KEMA standards
- British Standard compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage systems to ensure safety and compliance.
Applications
- Medium voltage electrical systems requiring back-up protection
- Industrial and commercial electrical installations
- Electrical distribution and control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety, reducing risk of faults and associated environmental hazards
- Durable design reduces waste through long service life
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects for a specified period.
Available Now
The Eaton 12KV 1A 7/8" VT Fuse is available for immediate purchase, ideal for medium voltage electrical protection applications.
