Memory Expansion Module to Suit ChallengerPlus Tecom

BRAND: Ness
SKU: 120-406
$1,361.30 List price: $1,815.00
+ −
30 Days Return Electricians Unlock Trade Access

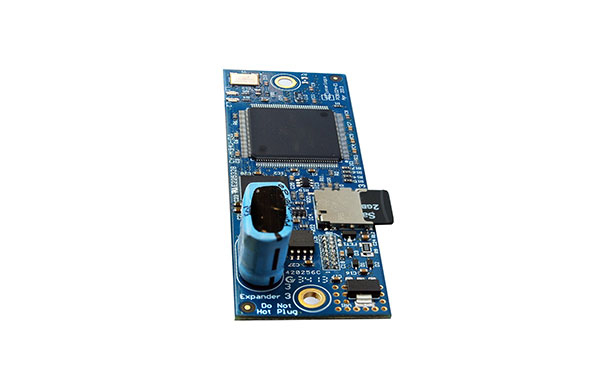

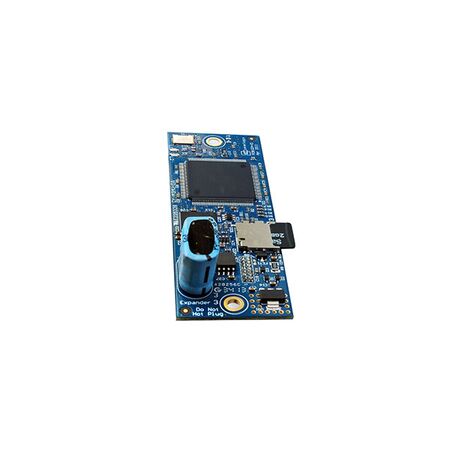

Tecom memory expansion module to Suit ChallengerPlus. Ideal for expanding panel memory.

Alternatively Known As: ChallengerPlus Memory Expander, Tecom User Memory Expansion Module, TS1084 IUM Module

Technical Specifications
  • Model: TS1084
  • Compatibility: Tecom ChallengerPlus and Challenger10 control panels
  • User Capacity: Up to 65,535 user or card records
  • Storage: Removable microSD card
  • Installation Position: Challenger panel Expander 3 slot
  • Card Data Formats: Up to 48-bit
  • Event Buffer: Up to 5,000 alarm events and 5,000 access events
  • Firmware Requirement: Challenger10 firmware V10-03.3951 or later
  • Dimensions (H x L x W): 10mm x 70mm x 45mm
  • Weight: 0.1 kg
Key Features
  • Expands ChallengerPlus user and cardholder memory to 65,535 records
  • Supports user data storage on a removable microSD card
  • Provides Intelligent User Module functionality for expanded card-format support
  • Plugs directly into the Challenger control panel Expander 3 slot
  • Suitable for new installations and upgrades of existing Challenger systems
Professional Installation Requirements
  • Installation should be performed by a qualified security technician or service person. Isolate the panel's plug-pack and standby battery before fitting the module, then configure and test the system after installation.
Applications
  • Expanding user and cardholder capacity in ChallengerPlus access control systems
  • Upgrading Challenger10 or ChallengerPlus commercial security panels
  • Commercial, educational, retail, banking and corporate security installations
  • Retrofit projects requiring additional user records without replacing the main control panel
Environmental Benefits
  • Extends the service life of existing ChallengerPlus control panels by enabling additional capacity without full panel replacement
  • Supports system upgrades that can reduce electronic equipment replacement and associated waste
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty, subject to the manufacturer's and authorised distributor's warranty terms.

Available Now

Available through Tecom and authorised Australian security-system distributors; confirm current stock and compatibility before ordering.
