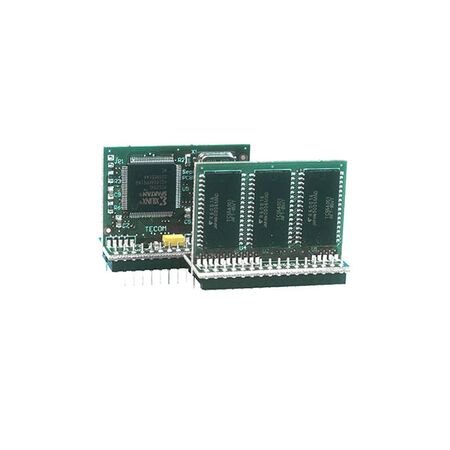

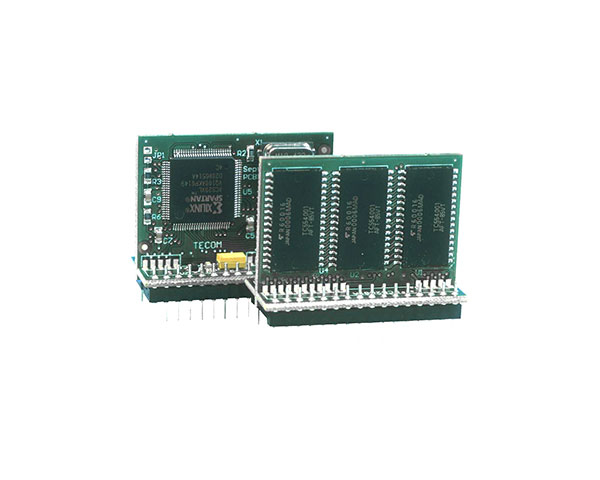

Memory V8 8MB IUM Tecom

BRAND: Ness
SKU: 120-407
$1,361.40 List price: $1,815.20
+ −
30 Days Return Electricians Unlock Trade Access
Tecom V8 memory module of 8MB IUM. Ideal for expanding Tecom panel memory.

Alternatively Known As: Tecom TS0884 8MB IUM, Challenger 8MB Memory Expansion Module, Tecom V8 Memory Expander

Technical Specifications
  • Memory Capacity: 8 MB
  • Module Type: Hardware Intelligent User Module (IUM)
  • Compatible System: Tecom Challenger V8 panels and compatible intelligent controllers
  • User Capacity: Up to 65,535 users with compatible Challenger configuration
  • Card Data Formats: Up to 48-bit
  • Alarm Groups: Up to 255
  • Door Groups: Up to 255
  • Floor Groups: Up to 128
  • Alarm Events Buffer: Up to 1,000 events
  • Access Events Buffer: Up to 1,000 events
  • Typical Part Number: TS0884 series
  • Dimensions (H x L x W): 10mm x 50mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Expands the memory capacity of compatible Tecom Challenger V8 panels
  • Provides hardware IUM functionality for expanded user and cardholder management
  • Supports multiple card formats and raw card data up to 48 bits
  • Increases supported user capacity to up to 65,535 when correctly configured
  • Expands alarm, door, floor group and event-buffer capacity
  • Designed for installation in Challenger control panels and compatible door or lift controllers
  • All compatible controllers in the system must use a consistent memory configuration
Professional Installation Requirements
  • Installation should be performed by a qualified security-system technician. The Challenger panel should be powered down before fitting the module, followed by any required firmware, panel defaulting and system-management programming. Confirm compatibility with the specific V8 panel and connected intelligent controllers before installation.
Applications
  • Expanding user capacity in Tecom Challenger V8 access control systems
  • Adding hardware IUM functionality to compatible Challenger alarm and access control panels
  • Supporting larger cardholder databases and multiple card formats
  • Upgrading compatible door and lift controller installations
Standards & Compliance
  • AS/NZS 2201 series – relevant to Australian and New Zealand intruder alarm systems; separate product-level certification for this memory module was not identified
  • AS/NZS IEC 60839.11.1 – relevant to electronic access control system components; separate product-level certification for this memory module was not identified
Environmental Benefits
  • Extends the useful service life of compatible Challenger panels by enabling memory expansion rather than full system replacement
  • Supports consolidation of access-control users and event data within existing system hardware
  • Electronic component recycling should be arranged through an approved e-waste recycling service at end of life
Warranty Information

Tecom Challenger hardware is listed with a 5-year warranty from the date of manufacture by Australian security-system distributors. Confirm the applicable terms, exclusions and proof-of-purchase requirements with the supplying distributor.

Available Now

Available through Tecom/Challenger security-system distributors and specialist Australian access-control suppliers; stock status should be confirmed before ordering.
