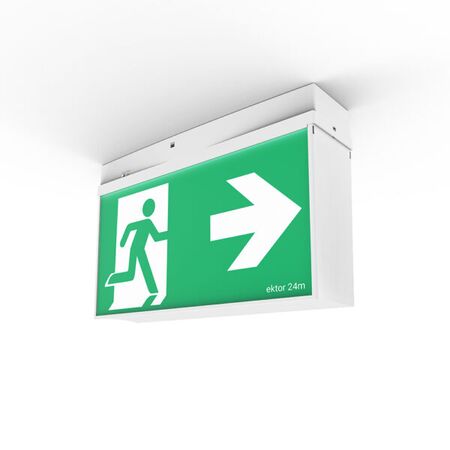

Mercury Advanced Emergency Exit 24M DALI | Maintained Mode | DALI Monitored | Polycarbonate Body | by Ektor
The Mercury Advanced Emergency Exit 24M DALI is designed for reliable emergency exit signage in commercial and industrial settings. With a maintained emergency mode lasting 90 minutes and DALI monitoring capabilities, this exit sign ensures safety and compliance. Its durable polycarbonate construction allows for wall or ceiling installation, making it a versatile choice for any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, DALI Emergency Exit Light, Wireless Emergency Exit Sign, Maintained Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Wall or Ceiling
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Standby Power: 1.9 W
- LED Wattage: 0.6 W
- Driver Type: EV-MERCURY-ADV-24M-DA (DALI DT1 Emergency), EV-MERCURY-ADV-24M-LK (Wireless IEC62386-104 with DT1)
- Dimmable: No
- Emergency Classification: C0:D6.3 C90:D6.3
- Emergency Output Power: 600 mW
- Emergency Duration: 90 minutes
- Replacement Battery Code: 13972
- Emergency Light Source Life: 56 years 6 months (projected)
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- DALI monitored with wireless test and monitoring support
- Polycarbonate body and diffuser for durability
- Wall or ceiling installation
- Integrated driver with re-wireable terminal block
- Emergency output power of 600 mW
- Viewing distance of 24 meters
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency exit signage
- Industrial facilities requiring emergency lighting
- Public spaces for safe evacuation routes
Standards & Compliance
- AS/NZS 60598.1 – General requirements for luminaires
- AS 60598.2.22 – Particular requirements for emergency lighting luminaires
- AS/NZS 61347.1 – Lamp control gear general and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for emergency lighting control gear
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- AS/NZS 2293.3 – Emergency escape lighting and exit signs for buildings
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED life reduces waste and replacement frequency
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Mercury Advanced Emergency Exit 24M - DALI by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
