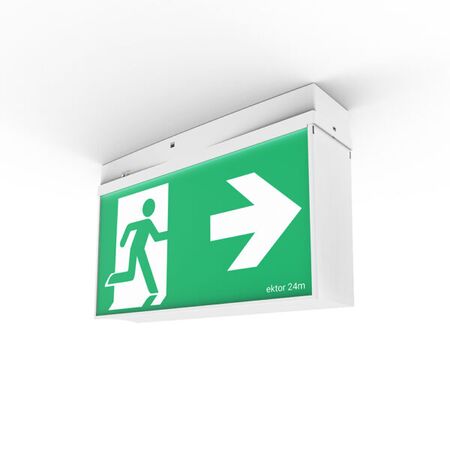

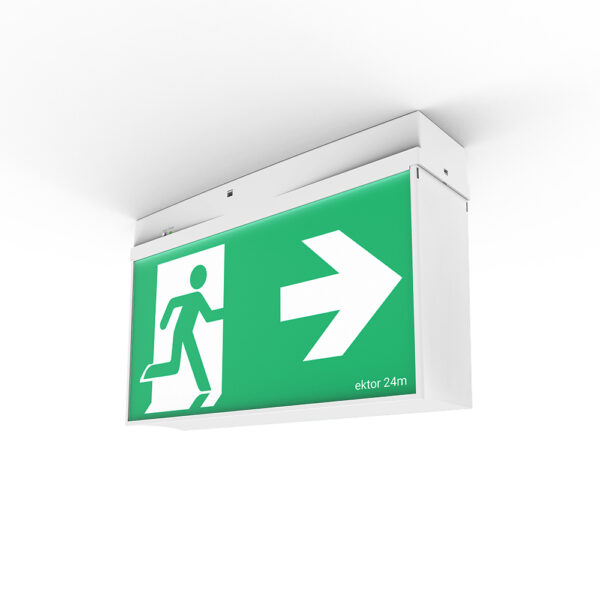

Mercury Core Emergency Exit Light | Maintained Mode | 90 Min Duration | 24m Viewing Distance | Black | by Ektor
The Mercury Core Emergency Exit Light is designed for reliable emergency signage, featuring a maintained mode with a 90-minute duration and a viewing distance of 24 meters. Built with a durable polycarbonate body, it's perfect for commercial buildings and public facilities, ensuring safety and compliance with emergency lighting standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Emergency Exit Light, Exit Signage, Emergency Exit Indicator
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 1.6 W
- Standby Power: 1.2 W
- Emergency Output Power: 600 mW
- Emergency Duration: 90 minutes
- Emergency Classification: C0:D5, C90:D5
- Driver: Integrated, included
- Wiring Type: Re-wireable terminal block (3 pin)
- Working Temperature Range: 0 to 40 °C
- Decal Size: 300 x 150 mm
- Product Design Life: 6 years
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Polycarbonate body and diffuser for durability
- Integrated driver with re-wireable terminal block
- Low standby power consumption
- Suitable for wall or ceiling installation
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper emergency function.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring emergency lighting
- Wall or ceiling installation for emergency exit guidance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption reduces energy usage
- Long product design life minimizes waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Mercury Core Emergency Exit 24m - Black is available for immediate purchase, ideal for commercial and public building emergency exit signage.
