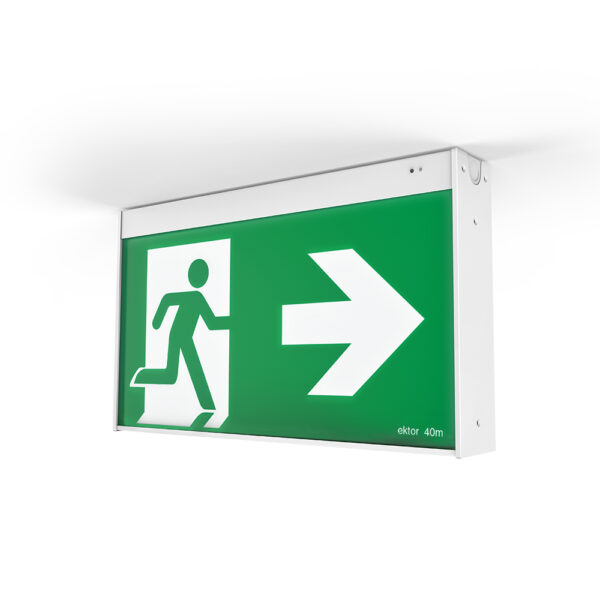

Mercury Jumbo Emergency Exit | Maintained Mode | 90 Min Duration | 40m Viewing Distance | by Ektor
The Mercury Jumbo Emergency Exit is designed for optimal safety in commercial and public spaces, featuring a maintained emergency mode with a 90-minute duration and a viewing distance of 40 meters. Built with a durable powder-coated steel body and polycarbonate diffuser, this exit sign ensures compliance with safety standards while providing reliable illumination during emergencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Exit Light, Emergency Exit Indicator, Safety Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 4.5 W
- Standby Power: 2.5 W
- LED Wattage: 1.4 W
- Operating Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Emergency Duration: 90 minutes
- Emergency Classification: C0:D6.3, C90:E4, C180:E4
- Product Design Life: 6 years
- Driver Type: Fixed output
- Wiring Type: Re-wireable terminal block (3 pin)
- Emergency Output Power: 1400 mW
- Replacement Battery Code: 01302
- Emergency Light Source Life: >10 years
- Dimensions (H x L x W): 250mm x 100mm x 500mm
- Weight: 1.5 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 40 meters
- Powder coated steel body with polycarbonate diffuser
- Fixed output driver included
- Re-wireable terminal block (3 pin)
- Non-dimmable LED light source
- Emergency output power of 1400 mW
- Decal size 500 x 250 mm
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with Australian safety standards and proper emergency lighting functionality.
Applications
- Commercial buildings
- Public spaces
- Emergency exit signage for safety compliance
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 60598 – Electrical Equipment
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Radio Disturbance Characteristics
Environmental Benefits
- LED technology reduces energy consumption compared to traditional lighting
- Long product design life of 6 years reduces waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Mercury Jumbo Emergency Exit- 40M Basic by Ektor is available for immediate purchase, ideal for commercial and public safety emergency exit applications.
