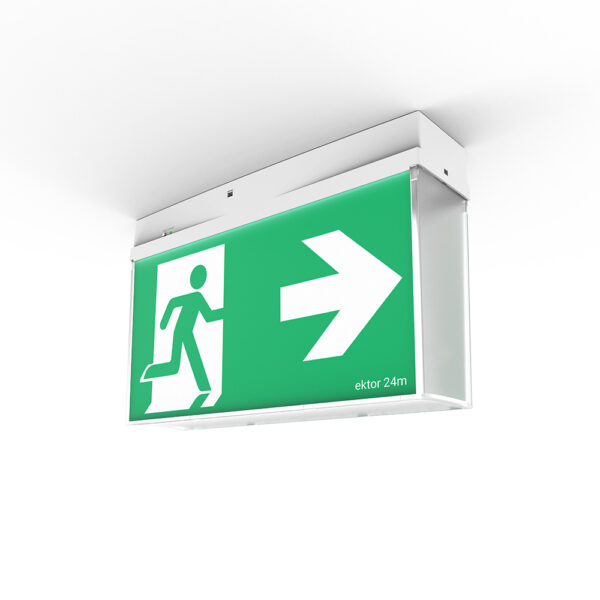

Mercury Pro Emergency Exit | Maintained Mode | 90 Min Duration | 24m Viewing Distance | Black | by Ektor
The Mercury Pro Emergency Exit Sign is designed for reliable emergency signage in commercial and public buildings. With a maintained emergency mode lasting 90 minutes and a viewing distance of 24 meters, this black exit sign ensures safety and compliance. Built with a durable polycarbonate body, it’s perfect for wall or ceiling installation, meeting all necessary safety regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, LED Exit Sign, Emergency Exit Light, Exit Signage, Emergency Exit Indicator
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 4.5 W
- Standby Power: 3 W
- LED Wattage: 1.5 W
- Operating Temperature Range: 0 to 40 °C
- Emergency Duration: 90 minutes
- Emergency Output Power: 1500 mW
- Decal Size: 300 x 150 mm
- Driver Type: DALI DT1 Emergency with wireless IEC62386-104 option
- Installation Type: Wall or Ceiling
- Emergency Classification: C0:C12.5, C90:C32
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Polycarbonate body and diffuser for durability
- DALI DT1 Emergency driver with wireless monitoring options
- Supports emergency test and monitoring over DALI and IEC62386-104
- LED light source with projected life over 20 years
- IP20 rated suitable for indoor use
- Re-wireable terminal block for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with Australian standards and proper emergency system integration.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring emergency illumination
- Wall or ceiling installation in compliance with safety regulations
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Long LED life reduces waste and replacement frequency
- Low power consumption with standby power of 3W
- Energy-efficient LED technology minimizes environmental impact
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Mercury Pro Emergency Exit Sign is available for immediate purchase, ideal for commercial and public building emergency safety applications.
