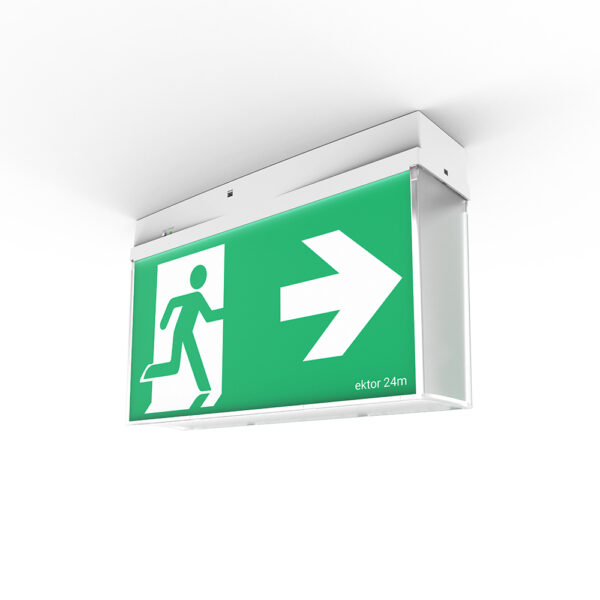

Mercury Pro Emergency Exit Sign | Maintained Mode | 90 Min Duration | 24m Viewing Distance | by Ektor
The Mercury Pro Emergency Exit Sign is designed for reliable emergency signage in commercial and public buildings. With a maintained mode providing 90 minutes of illumination and a viewing distance of 24 meters, this sign ensures safety compliance. Built with a durable polycarbonate body, it operates efficiently within a temperature range of 0 to 40 °C, making it ideal for wall or ceiling installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, LED Exit Sign, Maintained Emergency Light, DALI Emergency Exit Sign, Wireless Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 4.5 W
- Standby Power: 3 W
- LED Wattage: 1.5 W
- Emergency Duration: 90 minutes
- Emergency Output Power: 1500 mW
- Operating Temperature Range: 0 to 40 °C
- Installation Type: Wall or Ceiling
- Driver Type: DALI DT1 Emergency with wireless IEC62386-104 support
- Wiring Type: Re-wireable terminal block (3 or 5 pin)
- Emergency Classification: C0:C12.5, C90:C32
- Decal Size: 300 x 150 mm
- Emergency Light Source Life: >20 years
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Polycarbonate body and diffuser for durability
- DALI monitored emergency control with wireless test and monitoring support
- Re-wireable terminal block wiring
- LED wattage of 1.5W with maximum wattage of 4.5W
- Operating temperature range from 0 to 40 °C
- IP20 rated for indoor use
- Emergency output power of 1500 mW
- Supports emergency test and monitoring over DALI (IEC62386) compliant with IEC62386-202
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian safety standards and proper emergency system integration.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Wall or ceiling installation in compliance with safety regulations
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long product design life minimizes waste and replacement frequency.
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Mercury Pro Emergency Exit Sign is available for immediate purchase, ideal for commercial and public building emergency safety applications.
