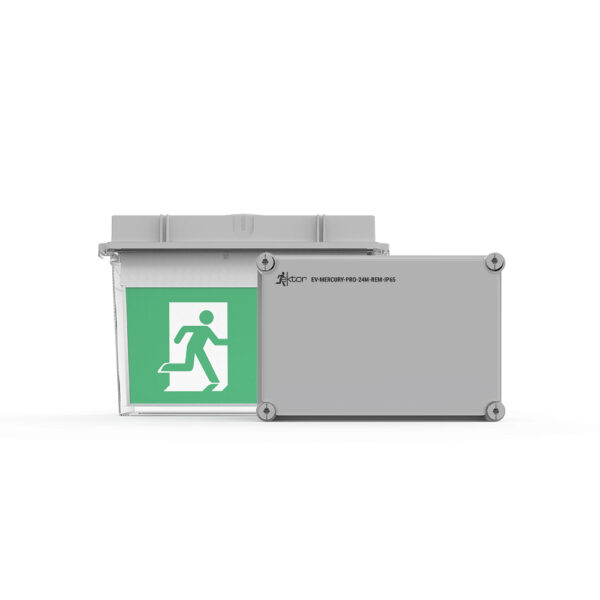

Mercury Pro Exit Light | IP65 Rated | IK10 Impact Resistant | Maintained Emergency Mode | by Ektor
The Mercury Pro Exit Light is designed for reliable emergency exit signage, featuring an IP65 rating for dust and water protection and an IK10 impact-resistant polycarbonate body. Ideal for commercial and industrial applications, this light offers a maintained emergency mode with a 90-minute duration and a DALI DT1 emergency driver for monitoring and testing support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Light, IP65 Exit Sign, DALI Emergency Exit Light, Maintained Exit Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -40 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 3 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Standby Power: 1.9 W
- Driver Type: DALI DT1 Emergency
- Emergency Mode: Maintained
- Emergency Classification: C0:E8, C90:E8, C180:D10
- Emergency Output Power: 1000 mW
- Replacement Battery Code: 01302
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 60 lm
- Viewing Distance: 24 m
- Emergency Control: DALI Monitored (DT1)
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 100mm x 300mm
- Weight: 1.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK10 impact resistant polycarbonate body and diffuser
- Surface mount installation for easy fitting
- Maintained emergency mode with 90 minutes duration
- DALI DT1 emergency driver with monitoring and testing support
- Emergency lumen output of 60 lm with 24 m viewing distance
- Wide operating temperature range from -40 to 40 °C
- Long product design life of 12 years
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical and safety standards and proper DALI emergency system integration.
Applications
- Commercial buildings emergency exit lighting
- Industrial facilities requiring durable exit signage
- Public spaces needing reliable emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during normal and emergency operation
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Mercury Pro Exit Light with remote driver and battery in IP65 case by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
