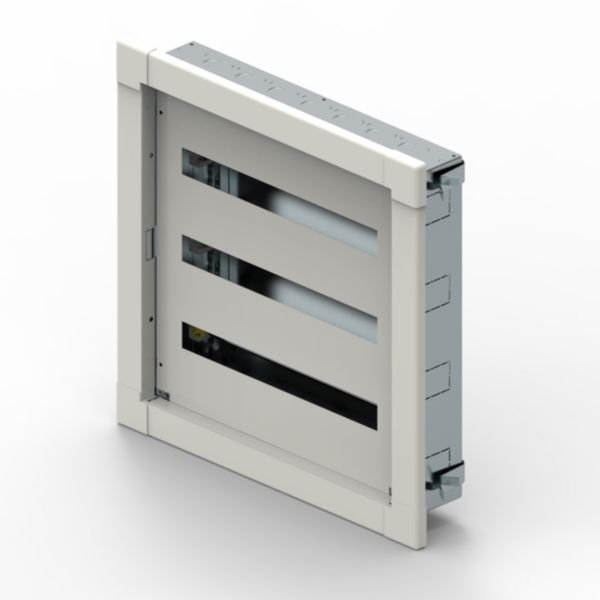

Metal Cabinet XL³ S 160 Flush Mount | 3 Rows for 72 Modules | IP30 Protection | Steel Housing | @EA of 1 | by Legrand
The Metal Cabinet XL³ S 160 Flush Mount is designed for efficient electrical switchboard assemblies, featuring a robust steel housing and IP30 protection. With a capacity for 72 modules across 3 rows, it’s perfect for industrial and commercial installations, ensuring safety and compliance with AS/NZS 61439 standards. This cabinet supports various modular devices, making it a versatile choice for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mounting method: Flush-mounted
- Number of rows: 3
- Module capacity: 72 modules (3 rows of 24)
- Degree of protection: IP30 (IP40 with door)
- Housing material: Steel
- Built-in depth: 103 mm
- Inner depth: 103 mm
- Colour: White (RAL 9003)
- DIN-rail included
- With mounting plate
- Lockable transparent or plain door optional
- Pre-cut sides for cable entries compatible with Lina 25 cable ducting
- Dimensions (H x L x W): 590mm x 135mm x 595mm
- Weight: 15 kg
Key Features
- Flush-mounted metal cabinet with 3 rows for 72 modules
- Allows installation of MCCBs type DPX3 160 (with accessory), DRX, and MCB devices
- IP30 protection against solid bodies larger than 2.5 mm, IP40 with door
- Pre-cut sides for cable entries compatible with Lina 25 cable ducting
- Adjustable rail for flexible device installation
- Supports terminal block for earth connection
- Can be equipped with transparent or reversible plain door with lock
- Built-in and inner depth of 103 mm for compact installation
- Housing made of steel with RAL 9003 white finish
- Extension possible with mounting plate included
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper assembly of devices.
Applications
- Electrical switchboard assemblies
- Industrial and commercial electrical installations
- Internal use for housing MCCBs, MCBs, and other modular devices
Standards & Compliance
- Complies with AS/NZS 61439 - Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable steel construction ensures long product life reducing waste
- Supports modular devices that can improve energy management and safety
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Metal Cabinet XL³ S 160 is available for immediate purchase, ideal for industrial and commercial electrical switchboard applications.
