Metal Cabinet XL³ S 160 Flush Mount | 4 Rows of 24 Modules | IP30 Protection | Steel Housing | @EA of 1 | by Legrand

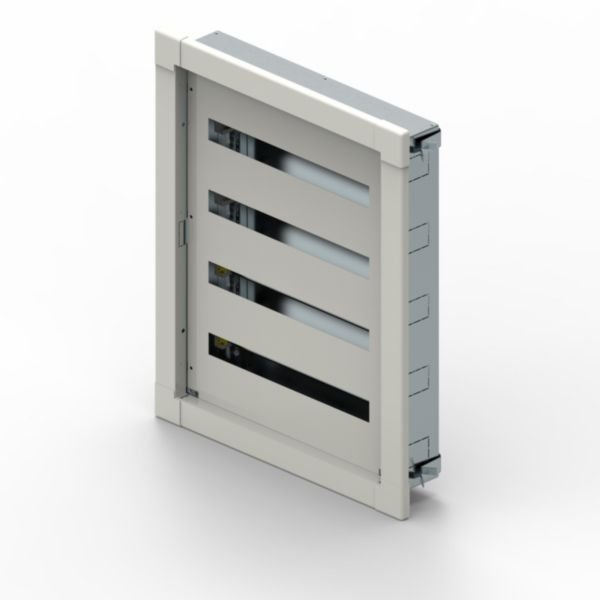

The Metal Cabinet XL³ S 160 Flush Mount is designed for efficient electrical distribution, featuring a robust steel housing and a capacity for 96 modules across 4 rows. With IP30 protection and compatibility with MCCBs and MCBs, it's perfect for industrial and commercial applications, ensuring safety and reliability in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Cabinet XL³ S 160 Flush Mount | 4 Rows of 24 Modules | IP30 Protection | Steel Housing | @EA of 1 | by Legrand
Brand: Legrand
SKU: 337224
Alternatively Known As: Electrical distribution cabinet, Flush mount switchboard cabinet, Modular electrical cabinet, XL3 S 160 enclosure
Technical Specifications
- Mounting method: Flush-mounted
- Number of rows: 4
- Modules capacity: 96 (4 rows of 24 modules)
- Housing material: Steel
- Built-in depth: 103 mm
- Inner depth: 103 mm
- Degree of protection: IP30 (IP40 with door)
- Colour: White (RAL 9003)
- Includes DIN-rail and mounting plate
- Cover model: With notch
- Transparent cover/door: Yes
- With lock: Yes
- Extension possible: Yes
- EMC-version: No
- Dimensions (H x L x W): 740mm x 135mm x 595mm
- Weight: 15 kg
Key Features
- Allows installation of MCCBs type DPX3 160 (with accessory), DRX and MCBs devices
- Certified IEC 61439 - 2 and - 3 assemblies
- IP30 protection against solid bodies larger than 2.5 mm, IP40 with door
- Pre-cut sides for cable entries compatible with Lina 25 cable ducting
- Adjustable rail for flexible device installation
- Terminal block support for earth connection
- Can be equipped with transparent or reversible plain door, blanking plates, clip-on holders, and document holders
- Flush-mounted with 4 rows and 96 modules capacity
- Steel housing with white RAL 9003 finish
- Includes DIN-rail and mounting plate
- Extension possible
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper assembly.
Applications
- Electrical switchboard installations
- Industrial and commercial electrical distribution
- Flush mounting for modular electrical devices
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and control gear assemblies
Environmental Benefits
- Durable steel construction ensures long product life reducing waste
- Supports modular electrical components enabling efficient energy management
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Legrand Metal Cabinet XL³ S 160 Flush Mounting 4 Rows of 24 Modules is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
