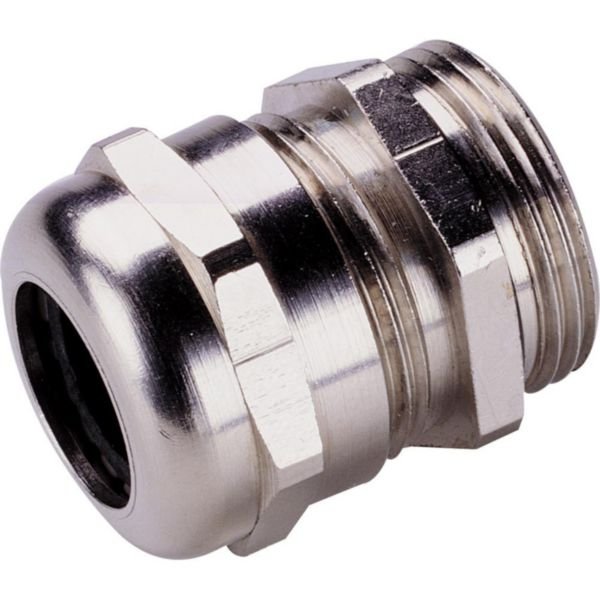

Metal Cable Glands IP68 | ISO 20 | Clamping Capacity 7-13 mm | Shock Resistant | @Each of 1 | by Legrand
Metal cable glands with IP68 protection ensure reliable sealing for electrical cables in harsh environments. Designed for clamping diameters of 7-13 mm, these glands feature a neoprene weatherproof seal and strong tensile strength. Ideal for industrial applications, they are shock resistant and halogen free, making them perfect for outdoor installations and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Cable Glands IP68 | ISO 20 | Clamping Capacity 7-13 mm | Shock Resistant | @Each of 1 | by Legrand
Brand: Legrand
SKU: 095503
Alternatively Known As: Metal cable gland IP68, Industrial cable gland, Waterproof cable gland, ISO 20 cable gland
Technical Specifications
- Thread type: PG
- Nominal thread size metric/PG: 42
- Pitch thread: 1.588 mm
- Thread length: 10 mm
- Wrench width: 58 mm
- Hexagon angular dimension: 63 mm
- Suitable for cable diameter: 7-13 mm
- Material: Metal
- Surface protection: Untreated
- Halogen free: Yes
- Glass-fibre reinforced: No
- Degree of protection (IP): IP68
- Shock resistant: Yes
- Colour: Colourless
- Operating temperature: -25 to 85 °C
- Storage temperature: -20 to 80 °C
- Explosion-tested version: No
- For Ex-zone gas: None
- For Ex-zone dust: None
- Dimensions (H x L x W): 63mm x 42mm x 58mm
- Weight: 0.15 kg
Key Features
- Metal cable glands with IP68 protection for water and dust ingress
- Mechanically tightened with neoprene weatherproof seal
- Locking part with flexible blades for strong tensile strength
- Conforms to EN 50262 standard
- Suitable for cable diameters 7-13 mm
- Shock resistant and halogen free
- Operating temperature range from -25°C to 85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with IP68 standards.
Applications
- Industrial connection for electrical cables
- Suitable for use in harsh environments requiring IP68 protection
- Cable management in machinery, control panels, and outdoor installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Metal Cable Glands IP68 ISO 20 with clamping capacity 7-13 mm are available for immediate purchase, ideal for industrial and outdoor electrical cable sealing applications.
