Trade Discount 20%

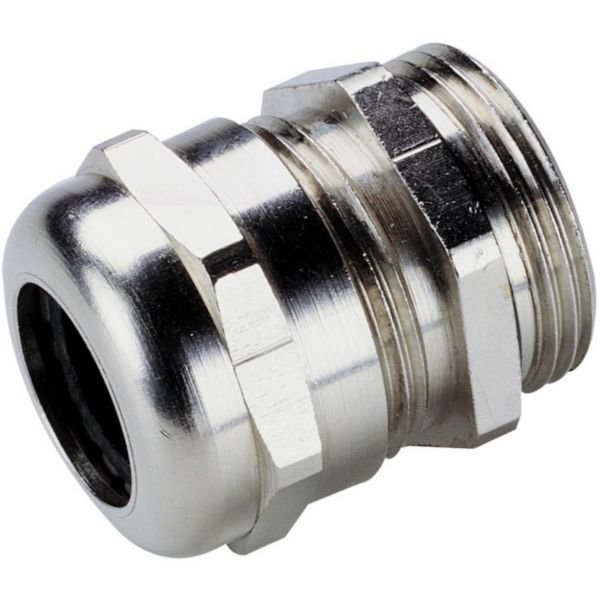

Metal Cable Glands IP68 PG 13.5 | Clamping Capacity 7-13 mm | Shock Resistant | Neoprene Seal | @Each of 1 | by Legrand
Metal cable glands with IP68 protection rating are perfect for industrial electrical connections, ensuring reliable sealing in harsh environments. Designed for cable diameters of 7-13 mm, these glands feature a neoprene weatherproof seal and strong tensile strength, making them ideal for applications requiring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Cable Glands IP68 PG 13.5 | Clamping Capacity 7-13 mm | Shock Resistant | Neoprene Seal | @Each of 1 | by Legrand
Brand: Legrand
SKU: 095513
Alternatively Known As: Metal Cable Gland PG13.5, IP68 Cable Gland, Industrial Cable Gland, Waterproof Cable Gland
Technical Specifications
- Thread type: Metric
- Nominal thread size metric/PG: 25
- Pitch thread: 1.5 mm
- Thread length: 7 mm
- Wrench width: 27 mm
- Hexagon angular dimension: 30 mm
- Suitable for cable diameter: 8-16 mm
- Material: Metal
- Surface protection: Untreated
- Halogen free: Yes
- Glass-fibre reinforced: No
- Degree of protection (IP): IP68
- Shock resistant: Yes
- Colour: Colourless
- Bend radius protection/trumpet flare: No
- With locknut: No
- Model: Straight
- Flat cable coupling: No
- Separable screw gland: No
- Operating / setting temperature: -25 to 85 °C
- Explosion-tested version: No
- For Ex-zone gas: None
- For Ex-zone dust: None
- Storage temperature: -20 to 80 °C
- Dimensions (H x L x W): 30mm x 25mm x 27mm
- Weight: 0.1 kg
Key Features
- Metal cable glands with IP68 protection rating
- Mechanically tightened with neoprene weatherproof seal
- Locking part with flexible blades for strong tensile strength
- Conforms to UTE C 68-300 and 68-312 guide recommendations
- Suitable for cable diameters 7-13 mm
- Shock resistant and halogen free
- Operating temperature range from -25°C to 85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with IP68 standards.
Applications
- Industrial connection for electrical cables
- Suitable for use in harsh environments requiring IP68 protection
- Cable sealing and strain relief in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Metal Cable Glands IP68 PG 13.5 with clamping capacity 7-13 mm are available for immediate purchase, ideal for industrial and harsh environment electrical connections.
