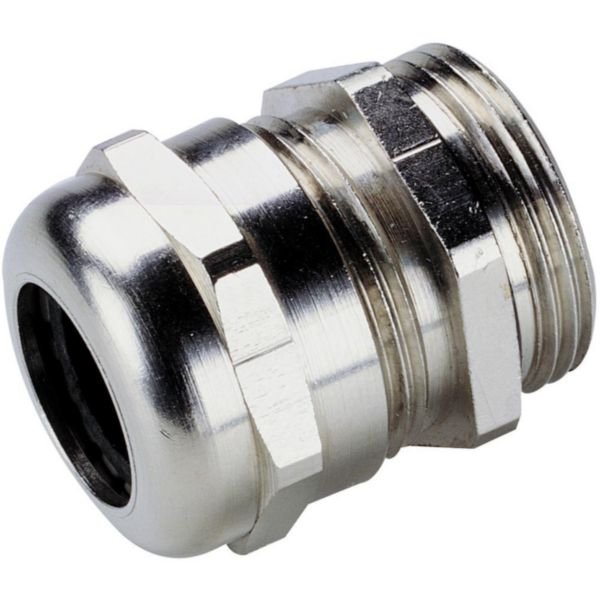

Metal Cable Glands IP68 PG16 | Clamping Capacity 8-15 mm | Durable Construction | Waterproof Protection | @Each of 1 | by Legrand
Metal cable glands IP68 PG16 are designed for secure cable entry in industrial and outdoor environments. With a clamping capacity of 8-15 mm, these glands feature a durable metal construction and a neoprene weatherproof seal for enhanced protection against dust and water. Ideal for applications requiring reliable sealing, they ensure compliance with electrical safety standards and are perfect for machinery and equipment wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Cable Glands IP68 PG16 | Clamping Capacity 8-15 mm | Durable Construction | Waterproof Protection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 095514
Alternatively Known As: Metal Cable Gland PG16, IP68 Cable Gland, Industrial Cable Gland, Waterproof Cable Gland
Technical Specifications
- Thread type: Metric
- Nominal thread size metric/PG: 20
- Pitch thread: 1.5 mm
- Thread length: 6 mm
- Wrench width: 22 mm
- Hexagon angular dimension: 24 mm
- Suitable for cable diameter: 7-13 mm
- Material: Metal
- Surface protection: Untreated
- Halogen free: Yes
- Glass-fibre reinforced: No
- Degree of protection (IP): IP68
- Shock resistant: Yes
- Colour: Colourless
- Operating / setting temperature: -25 to 85 °C
- Storage temperature: -20 to 80 °C
- Model: Straight
- With locknut: No
- Bend radius protection/trumpet flare: No
- Separable screw gland: No
- Explosion-tested version: No
- For Ex-zone gas: None
- For Ex-zone dust: None
- Dimensions (H x L x W): 22mm x 20mm x 24mm
- Weight: 0.1 kg
Key Features
- Metal construction for durability and mechanical strength
- IP68 rated for dust-tight and waterproof protection
- Neoprene weatherproof seal for enhanced sealing
- Flexible locking blades provide excellent tensile strength
- Suitable for cable diameters 8-15 mm
- Shock resistant and halogen free
- Operating temperature range from -25°C to 85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Industrial electrical installations requiring secure cable entry
- Outdoor and indoor environments needing IP68 protection
- Machinery and equipment wiring with cable diameters 8-15 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Halogen-free materials minimize environmental impact
- IP68 sealing prevents ingress of dust and water, reducing equipment failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
Legrand Metal Cable Glands IP68 PG16 with clamping capacity 8-15 mm are available for immediate purchase, ideal for industrial and outdoor electrical cable management.
