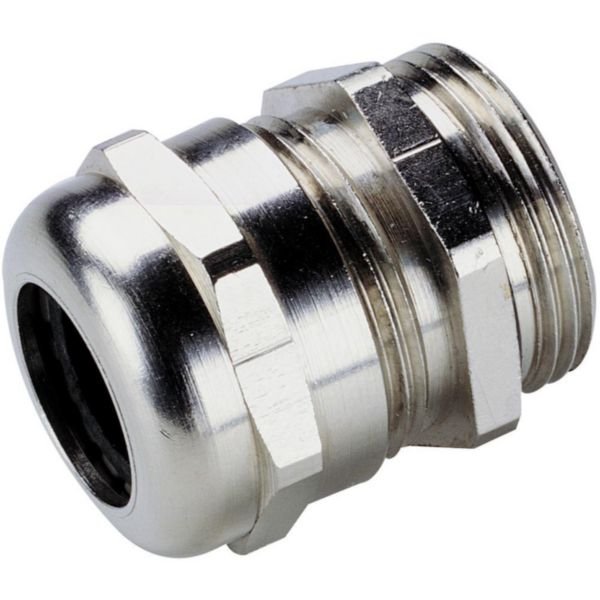

Metal Cable Glands IP68 PG36 | Clamping Capacity 22-34.5 mm | Shock Resistant | Neoprene Seal | @Each of 1 | by Legrand
Metal cable glands IP68 PG36 are designed for secure cable entry in harsh environments, featuring a clamping capacity of 22-34.5 mm and a neoprene weatherproof seal. Ideal for industrial applications, these glands ensure robust sealing and protection against water ingress, making them perfect for electrical installations that require durability and compliance with IP68 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Cable Glands IP68 PG36 | Clamping Capacity 22-34.5 mm | Shock Resistant | Neoprene Seal | @Each of 1 | by Legrand
Brand: Legrand
SKU: 095517
Alternatively Known As: Metal Cable Gland PG36, IP68 Cable Gland, Industrial Cable Gland, Waterproof Cable Gland
Technical Specifications
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Pitch thread: 1.5 mm
- Thread length: 5 mm
- Wrench width: 17 mm
- Hexagon angular dimension: 19 mm
- Suitable for cable diameter: 22-34.5 mm
- Material: Metal
- Surface protection: Untreated
- Halogen free: Yes
- Glass-fibre reinforced: No
- Degree of protection (IP): IP68
- Shock resistant: Yes
- Colour: Colourless
- Operating temperature: -25 to 85 °C
- Storage temperature: -20 to 80 °C
- Model: Straight
- With locknut: No
- Separable screw gland: No
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.15 kg
Key Features
- Metal cable glands with IP68 protection rating
- Mechanically tightened with neoprene weatherproof seal
- Locking part with flexible blades for strong tensile strength
- Conforms to UTE C 68-300 and 68-312 guide recommendations
- Clamping capacity from 22 mm to 34.5 mm
- Shock resistant and halogen free
- Operating temperature range from -25°C to 85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with IP68 standards.
Applications
- Industrial connection for secure cable entry
- Suitable for harsh environments requiring IP68 protection
- Used in electrical installations needing robust cable sealing
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Halogen-free materials minimize environmental impact
- IP68 rating ensures protection against water ingress, reducing failure and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Metal Cable Glands IP68 PG36 with clamping capacity 22-34.5 mm are available for immediate purchase, ideal for industrial and harsh environment electrical connections.
