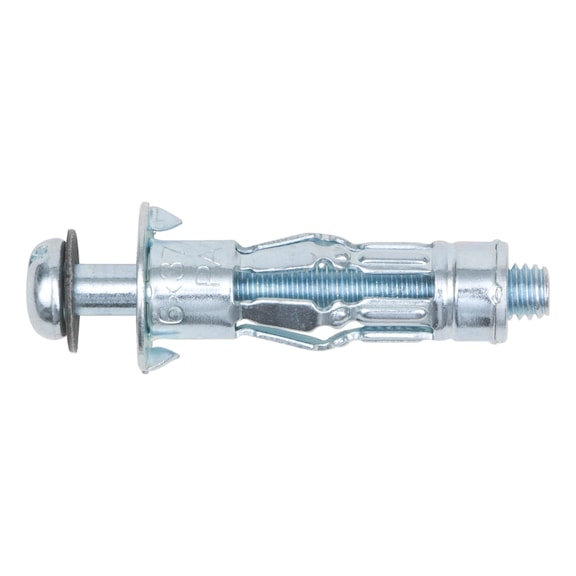

Metal Cavity Anchor with Pan Head Screw | M5 Diameter | Zinc Plated | @Pack of 50 | by Wurth
The Metal Cavity Anchor with Pan Head Screw is designed for secure fastening in cavity walls, featuring a robust M5 diameter and durable zinc plating for corrosion resistance. Ideal for construction professionals, this anchor provides excellent holding power and is pre-assembled for easy installation with manual assembly pliers. Perfect for securing fixtures to hollow substrates like tiles and pumice, ensuring a reliable and long-lasting solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-MH/L
- Thread type x anchor diameter: M5
- Design: With pan head screw
- Min./max. board thickness/mirror thickness (d a): 5-13 mm
- Material: Steel
- Nominal drill-bit diameter (d 0): 10 mm
- Surface: Zinc plated
- Sleeve length (l Hü): 37 mm
- Screw length: 49 mm
- Through-hole in the component to be connected (d f): 6 mm
- Dimensions (H x L x W): 37mm x 49mm x 10mm
- Weight: 0.05 kg
Key Features
- Proven solution for easy and secure fastening in cavity walls
- Excellent holding power due to spreading supporting elements with large contact radius
- Simple setting with associated mounting pliers
- Pre-assembled with metric pan head screw
- Anti-rotation lock on the collar prevents movement in the drill hole
- Pan head screw can be loosened without loss of holding power
- Fire resistance tested in hollow pumice
Professional Installation Requirements
- Installation requires manual assembly pliers and should be performed by a qualified professional to ensure secure fastening and compliance with safety standards.
Applications
- Fastening in all types of cavity walls
- Suitable for use with manual assembly pliers
- Ideal for securing fixtures to hollow substrates such as tiles and pumice
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Metal Cavity Anchor W MH L Pan Head Screw M5X49 is available for immediate purchase, ideal for construction and building applications requiring secure fastening in cavity walls.
