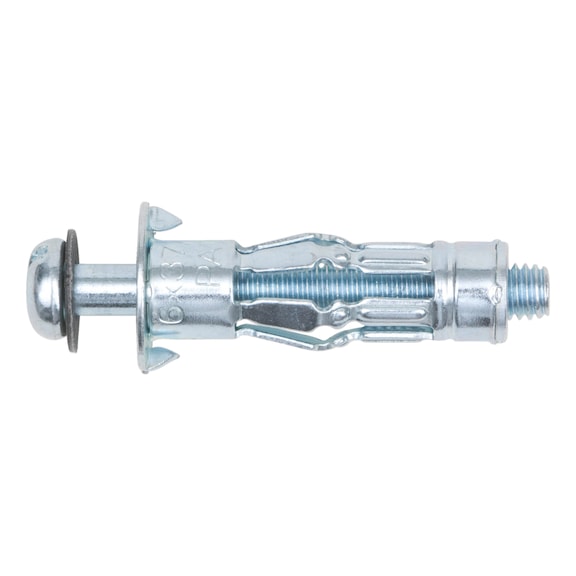

Metal Cavity Anchor with Pan Head Screw | M6 | Zinc Plated | Excellent Holding Power | @Pack of 50 | by Wurth
The Metal Cavity Anchor with Pan Head Screw is designed for secure fastening in cavity walls, featuring a robust M6 design and zinc plating for corrosion resistance. Ideal for both residential and commercial applications, this anchor provides excellent holding power and is pre-assembled for easy installation. Perfect for securing fixtures to hollow substrates like tiles and pumice, it ensures reliable performance in various construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-MH/L
- Thread type x anchor diameter: M6
- Design: With pan head screw
- Min./max. board thickness/mirror thickness: 5-13 mm
- Material: Steel
- Nominal drill-bit diameter: 12 mm
- Surface: Zinc plated
- Sleeve length: 37 mm
- Screw length: 49 mm
- Through-hole in the component to be connected: 7 mm
- Dimensions (H x L x W): 37mm x 49mm x 12mm
- Weight: 0.05 kg
Key Features
- Proven solution for easy and secure fastening in cavity walls
- Excellent holding power due to spreading supporting elements with large contact radius
- Simple setting with associated mounting pliers
- Pre-assembled with metric pan head screw
- Anti-rotation lock on the collar prevents movement in the drill hole
- Pan head screw can be loosened without loss of holding power
- Fire resistance tested in hollow pumice
Professional Installation Requirements
- Installation requires use of manual assembly pliers and proper drill bit size; professional installation recommended for optimal safety and performance.
Applications
- Fastening in all types of cavity walls
- Suitable for use with manual assembly pliers
- Ideal for securing fixtures to hollow substrates such as tiles and pumice
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Metal Cavity Anchor W MH L Pan Head Screw M6X49 is available now for immediate purchase. Ideal for secure fastening in cavity walls in residential and commercial construction.
