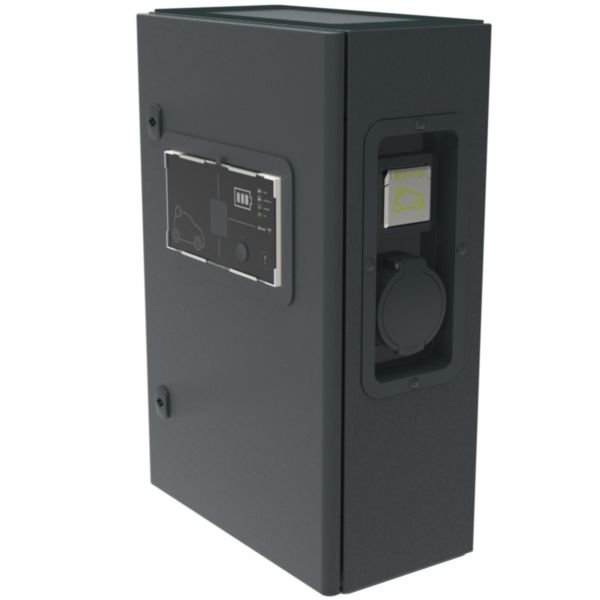

Metal Charging Station Green'up Premium 1Ph | 7.4kW Power | Mode 2 & 3 | IP55 Rated | @Each of 1 | by Legrand
The Metal Charging Station Green'up Premium 1Ph is designed for efficient electric vehicle charging, offering a powerful 7.4kW output and compatibility with Mode 2 and 3 charging. Ideal for both residential and commercial applications, this station features durable steel housing with IP55 protection, ensuring longevity and reliability in various environments. With Bluetooth communication and programmable settings via the EV Charge app, it provides a modern solution for electric vehicle owners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Charging Station Green'up Premium 1Ph | 7.4kW Power | Mode 2 & 3 | IP55 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 058043
Alternatively Known As: EV Charging Station, Electric Vehicle Charger, Green'up EV Charger, Legrand EV Charging Point, Mode 2 and 3 EV Charger
Technical Specifications
- Nominal connection power: 7.4 kW
- Single phase installation
- Number of charging units: 1
- Number of socket outlets Type 2: 1
- Housing material: Steel
- Degree of protection: IP55
- Impact strength: IK10
- Operating temperature range: -25 to 50 °C
- Storage temperature range: -25 to 70 °C
- Nominal voltage: 220-240 V
- Communication: Bluetooth, OCPP 1.6J
- Programmable with EV Charge app
- With miniature circuit breaker (MCB): Yes
- Connected object: Yes
- Dimensions (H x L x W): 740mm x 243mm x 430mm
- Weight: 25 kg
Key Features
- Local wireless communication via Bluetooth for update, configuration, and control via smartphone or tablet app
- Remote IP wireless communication capability with optional communication kit
- External command input via contactor, clock, or switch (dry contact input 12 V=)
- Adjustable power locally or remotely through app or web interface
- Restricted access by RFID badge with optional RFID reader
- Evolutive with communication kit for remote management such as OCPP
- Single phase installation with nominal connection power of 7.4 kW
- Housing made of durable steel with IP55 protection and IK10 impact resistance
- Programmable and interoperable connection protocol with EV Charge app available on App Store and Google Play
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports electric vehicle adoption reducing carbon emissions
- Energy-efficient charging with adjustable power settings
- Durable steel housing ensures long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Metal Charging Station Green'up Premium 1Ph 7.4kW with DC Protection is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
