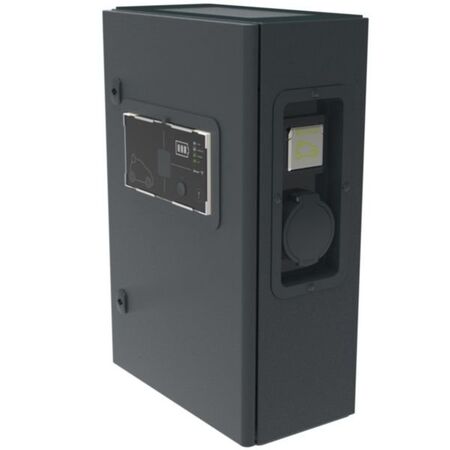

Metal Charging Station Green'up Premium 3ph | 22kW Power | Mode 2 & 3 Charging | IP55 Rated | @EA of 1 | by Legrand
The Metal Charging Station Green'up Premium 3ph is designed for efficient electric vehicle charging, offering 22kW power and supporting both Mode 2 and Mode 3 charging. Ideal for residential and commercial use, this station features a durable steel housing with IP55 protection, ensuring reliable performance in various environments. With Bluetooth communication for easy configuration and control, it's perfect for modern electric vehicle needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Charging Station Green'up Premium 3ph | 22kW Power | Mode 2 & 3 Charging | IP55 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 058048
Alternatively Known As: EV Charger 22kW, Green'up Premium EV Charging Station, Legrand Electric Vehicle Charger, 3-phase EV Charger, Mode 2 and 3 EV Charger
Technical Specifications
- Nominal connection power: 22 kW
- Current: 32A
- Phases: 3-phase
- Number of charging units: 1
- Socket outlets: 1 Type 2, 1 household socket
- Housing material: Steel
- Degree of protection: IP55
- Impact resistance: IK10
- Operating temperature: -25°C to 50°C
- Storage temperature: -25°C to 70°C
- Nominal voltage: 380-415 V
- Communication: Bluetooth, OCPP 1.6J
- Programmable via app and web software
- Supports RFID access control (optional reader required)
- Includes miniature circuit breaker (MCB)
- Dimensions (H x L x W): 740mm x 243mm x 430mm
- Weight: 25 kg
Key Features
- Local wireless communication via Bluetooth for update, configuration, and control via smartphone or tablet app
- Remote IP wireless communication capability with optional communication kit
- External command input via contactor, clock, or switch (dry contact input 12 V=)
- Adjustable power locally or remotely through app or web interface
- Restricted access via optional RFID badge reader
- Evolutive with communication kit for remote management such as OCPP
- Steel housing with IP55 protection and IK10 impact resistance
- Supports Mode 2 and Mode 3 charging for electric vehicles
- Nominal connection power of 22 kW at 32A, 3-phase
- Equipped with one Type 2 socket outlet and one household socket outlet
- Includes miniature circuit breaker (MCB) for safety
- Operates in temperature range -25°C to 50°C
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric vehicles
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing carbon emissions
- Energy-efficient charging with adjustable power settings
- Durable steel housing ensures long product life and reduced waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms and conditions.
Available Now
The Legrand Metal Charging Station Green'up Premium 3ph 22kW is available for immediate purchase, ideal for residential, commercial, and public electric vehicle charging applications.
