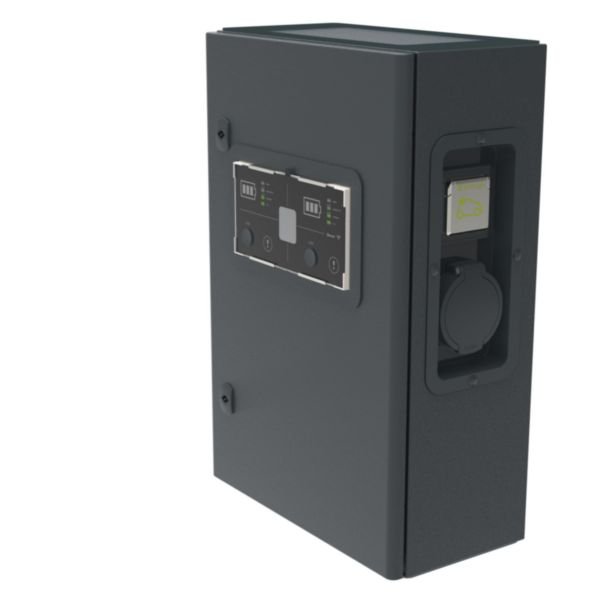

Metal Charging Station Green'up Premium 3ph | 22kW Power | Dual Charging for 2 EVs | IP55 Rated | @EA of 1 | by Legrand
The Metal Charging Station Green'up Premium 3ph is designed for efficient electric vehicle charging, featuring 22kW power and dual charging points for two vehicles simultaneously. Ideal for both residential and commercial applications, this station supports Mode 2 and Mode 3 charging, ensuring safe and reliable operation with IP55 protection and Bluetooth communication for easy control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Charging Station Green'up Premium 3ph | 22kW Power | Dual Charging for 2 EVs | IP55 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 058049
Alternatively Known As: EV Charging Station, Electric Vehicle Charger, Dual EV Charger, Green'up Premium EV Charger, 3-phase EV Charger
Technical Specifications
- Power: 22 kW nominal connection power
- Current: 32A
- Number of charging units: 2
- Charging modes: Mode 2 and Mode 3
- Communication: Bluetooth local wireless, optional remote IP communication
- Access control: Optional RFID badge reader
- Housing material: Steel
- Degree of protection: IP55
- Impact resistance: IK10
- Operating temperature: -25 to 50 °C
- Storage temperature: -25 to 70 °C
- Nominal voltage: 380-415 V
- Safety features: Miniature circuit breaker (MCB), DC protection
- Programmable and supports OCPP 1.6J protocol
- Dimensions (H x L x W): 740mm x 243mm x 430mm
- Weight: 35 kg
Key Features
- Dual charging points for simultaneous charging of two electric vehicles
- Local wireless communication via Bluetooth for configuration and control via smartphone or tablet app
- Remote IP wireless communication capability with optional communication kit
- Adjustable power locally or remotely through app or web interface
- Restricted access via optional RFID badge reader
- Steel housing with IP55 protection and IK10 impact resistance
- Supports 3-phase power supply with nominal voltage 380-415 V
- Includes miniature circuit breaker (MCB) for safety
- Programmable and interoperable with OCPP 1.6J protocol
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with building electrical systems.
Applications
- Electric vehicle charging for residential and commercial locations
- Dual vehicle charging stations for homes, offices, and public parking
- Mode 2 and Mode 3 electric vehicle charging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption and emissions
- Energy-efficient charging with adjustable power settings to optimize electricity use
- Durable steel construction ensures long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Metal Charging Station Green'up Premium 3ph for 2 Electric Cars is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
