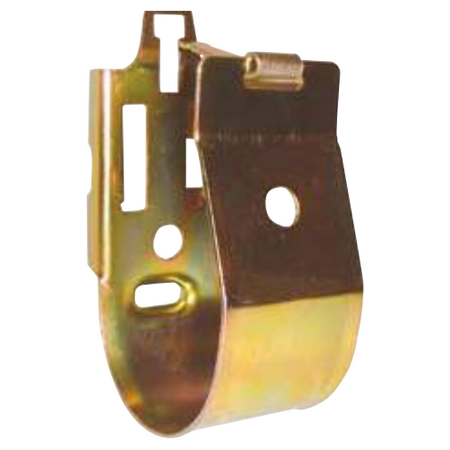

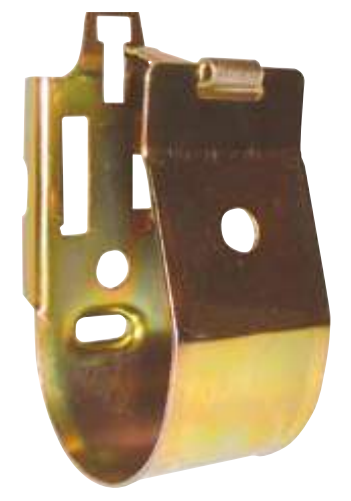

Metal Hanger | Zinc Passivated Steel | 1000°C Temperature Resistance | Rapid 2 Pipe Installation | by Aspen Pumps
The Metal Hanger is designed for efficient HVAC pipe support, made from zinc passivated mild steel for enhanced durability and corrosion resistance. With a maximum temperature resistance of 1000°C, it’s perfect for both residential and commercial air conditioning systems. This hanger allows for rapid installation of two pipes, eliminating the need for cable trays and ensuring compliance with fire regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Hanger | Zinc Passivated Steel | 1000°C Temperature Resistance | Rapid 2 Pipe Installation | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6493
Alternatively Known As: Pipe Support Clip, Air Conditioning Line Set Hanger, Metal Pipe Clip, HVAC Pipe Support
Technical Specifications
- Material: Zinc passivated mild steel
- Maximum temperature resistance: 1000°C
- Maximum recommended distance per clip: 1.2 meters
- Fits pipe sizes: 2” general, 1/2” liquid line, 7/8” gas line
- Dimensions (H x L x W): 30mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Fits on both M8 and M10 studding
- Allows rapid 2 pipe installation
- Eliminates the need for cable trays
- Zinc passivated to resist corrosion
- Meets fire regulations requirements
Professional Installation Requirements
- Professional installation by qualified HVAC or electrical technicians is recommended to ensure compliance with fire and safety regulations.
Applications
- Supports air conditioning line set pairs
- Pipe support in HVAC installations
- Suitable for commercial and residential air conditioning systems
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination (related to workplace safety in installations)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems (for installation safety)
Environmental Benefits
- Durable zinc passivated coating extends product life, reducing replacement frequency and waste
- Supports efficient HVAC installations which can improve system energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Metal Hanger is available for immediate purchase, ideal for HVAC pipe support applications in residential and commercial settings.
