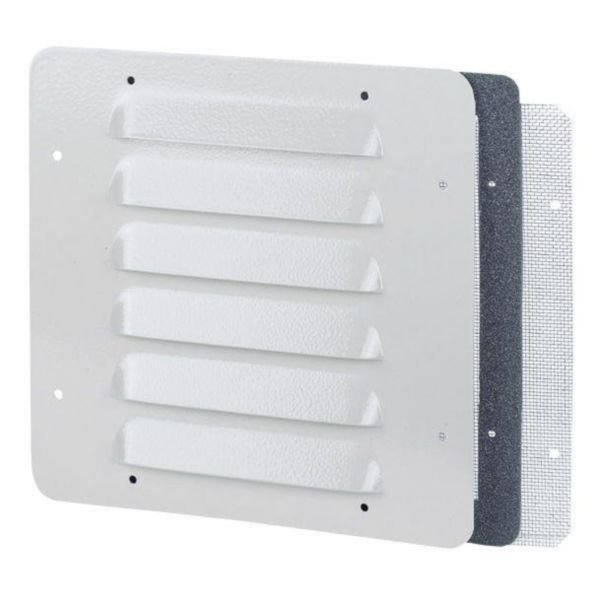

Metal Louvre | IP32 & IK10 Rated | 248x248 mm | RAL 7035 | @Each of 1 | by Legrand
The Metal Louvre is designed for effective ventilation in industrial enclosures, featuring IP32 and IK10 ratings for protection against dust and water ingress. Made from halogen-free lacquered steel, it includes built-in filters and anti-insect grilles, making it ideal for electrical cabinets and commercial applications. Ensure optimal heat regulation and natural airflow with this durable and reliable solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Louvre | IP32 & IK10 Rated | 248x248 mm | RAL 7035 | @Each of 1 | by Legrand
Brand: Legrand
SKU: 034805
Alternatively Known As: Metal ventilation louvre, enclosure ventilation grille, industrial cabinet louvre, metal air vent grille
Technical Specifications
- Material: Lacquered steel
- Dimensions: 248 x 248 mm
- Depth suitability: 13 mm enclosure building depth
- Maximum number of fans supported: 2
- Degree of protection: IP32
- Impact resistance: IK10
- Colour: RAL 7035 grey
- Includes built-in filter and anti-insect grilles
- Mounting method: Screw mounting
- Halogen free
- Dimensions (H x L x W): 248mm x 30mm x 248mm
- Weight: 1.2 kg
Key Features
- Heat regulation for cabinets and enclosures
- Natural ventilation with metal louvres
- Set includes 2 metal louvres and 2 anti-insect grilles
- High mechanical impact resistance with IK10 rating
- Protection against solid objects and limited water ingress with IP32 rating
- Halogen free lacquered steel construction
- Screw mounting for secure installation
Professional Installation Requirements
- Professional installation recommended to ensure proper sealing and secure mounting in industrial enclosures.
Applications
- Industrial enclosures for ventilation and heat regulation
- Electrical cabinets requiring natural ventilation
- Enclosure protection in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Facilitates natural ventilation reducing the need for powered cooling
- Halogen free materials for safer environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand Metal Louvre IP32 IK10 248x248 mm RAL 7035 is available for immediate purchase, ideal for industrial and commercial enclosure ventilation applications.
