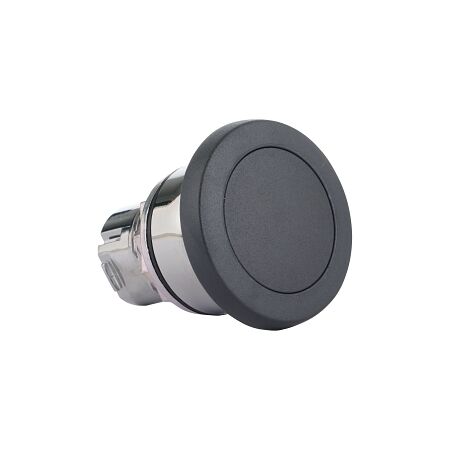

Metal Momentary Pushbutton 22.5 mm | 40 mm Cap | IP66 Rated | Black by NHP
Metal momentary pushbutton with 22.5 mm diameter and 40 mm cap—ideal for industrial control panels and emergency stop applications. Built for durability with IP66 protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Metal Momentary Mush Hd 40 mm Black
Brand: NHP
SKU: D7MMM42
Alternatively Known As: D7 Pushbutton, Metal Momentary Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service: 500,000 cycles
- Mechanical life: 10,000,000 cycles
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Operating temperature: -25 to 70 °C
- Unlocking method: Pull-release
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.2 kg
Key Features
- 22.5 mm diameter pushbutton with a 40 mm cap.
- Metal front ring for durability.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Emergency stop applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Metal Momentary Mush Hd 40 mm Black is available now for immediate purchase. Ideal for industrial control applications.
