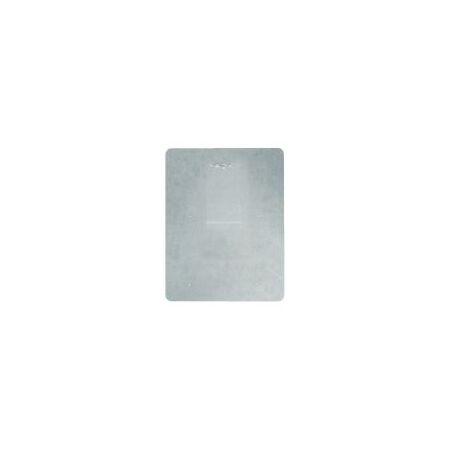

Metal Mounting Back Plate to Suit DB2 12 Module Switchboard Chint

BRAND: CABAC
SKU: 400685
$22.20 List price: $29.70
+ −
30 Days Return Electricians Unlock Trade Access
Chint metal mounting back plate to suit DB2 12 module flush distribution board. Ideal for fixing the enclosure and gear to the wall or cavity.

Alternatively Known As: DB2 12 Module Flush Distribution Board Back Plate, CHINT DB2-12F Mounting Plate, Switchboard Chassis Plate

Technical Specifications
  • Compatibility: CHINT DB2-12F 12-module flush distribution board
  • Product Type: Replacement metal mounting back plate
  • Application: Flush-mounted distribution board installation
  • Material: Formed metal sheet
  • Board Capacity: 12 modules
  • Compatible Enclosure: CHINT DB2 flush distribution box
  • Flush Enclosure Dimensions: 280 mm wide x 222 mm high x 88 mm deep
  • Dimensions (H x L x W): 198mm x 257mm x 1mm
  • Weight: 0.4 kg
Key Features
  • Designed specifically for the CHINT DB2-12F flush distribution board
  • Provides a rigid mounting surface for the enclosure and installed electrical equipment
  • Suitable for wall or cavity installation
  • Supports secure positioning of modular electrical gear
  • Replacement or spare accessory for DB2-12F assemblies
Professional Installation Requirements
  • Installation and electrical assembly work should be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements.
Applications
  • Mounting CHINT DB2-12F distribution boards in wall cavities
  • Residential electrical distribution installations
  • Commercial and light-industrial modular switchboard assemblies
  • Replacement of a damaged or missing DB2-12F mounting plate
Standards & Compliance
  • AS/NZS 61439.3 for distribution boards intended to be operated by ordinary persons, where applicable to the completed DB2 distribution-board assembly
  • AS/NZS 3000 for installation of the completed electrical installation
Environmental Benefits
  • Metal construction can be recovered and recycled at end of service life
  • Durable mounting component that supports longer service life of the distribution-board assembly
  • Replacement of an individual plate can reduce waste compared with replacing the complete enclosure
Warranty Information

CHINT general low-voltage apparatus warranty: 27 months from the date of manufacture when supplied through authorised sales channels, subject to the applicable terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
