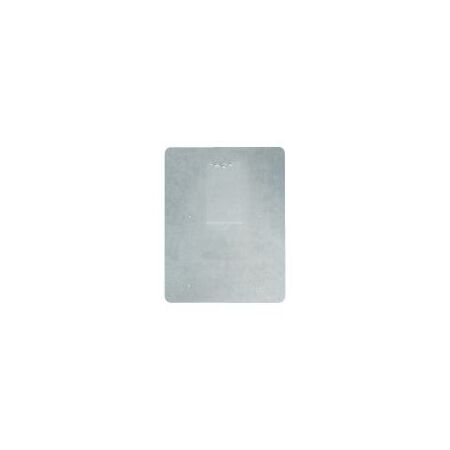

Metal Mounting Back Plate to Suit DB2 24 Module Switchboard Chint

BRAND: CABAC
SKU: 444368
$58.60 List price: $78.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint metal mounting back plate to suit DB2 24 module flush distribution board. Ideal for fixing the enclosure and gear to the wall or cavity.

Alternatively Known As: CHINT DB2-24F Back Plate, CHINT Distribution Board Mounting Plate, Metal Switchboard Back Plate

Technical Specifications
  • Compatibility: CHINT DB2-24F 24-module flush distribution board
  • Product Type: Metal mounting back plate
  • Material: Metal sheet
  • Mounting Application: Secures the distribution board enclosure and electrical equipment to a wall or cavity
  • Compatible Distribution Box Rating: Up to 100A, 230V AC, 50/60Hz
  • Enclosure Standard Reference: IEC/EN 60670-24
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 255mm x 308mm x 1mm
  • Weight: 0.55 kg
Key Features
  • Designed specifically for CHINT DB2-24F flush distribution boards
  • Provides a rigid mounting surface for the enclosure and installed electrical gear
  • Suitable for wall or cavity mounting applications
  • Supports organised installation of compatible circuit protection equipment
  • Removable accessory component for distribution board fit-out and replacement
Professional Installation Requirements
  • Installation and any electrical work associated with the distribution board should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
  • Residential distribution board installations
  • Commercial electrical distribution installations
  • Light industrial switchboard fit-outs
  • Flush-mounted DB2 distribution board replacement or refurbishment
Standards & Compliance
  • AS/NZS 3000:2018 for electrical installation and switchboard installation requirements
  • AS/NZS 61439.3:2016 may apply to the completed distribution board assembly when intended for operation by ordinary persons
Environmental Benefits
  • Metal construction can be recovered and recycled at the end of service life
  • Provides a durable mounting surface that can extend the usable life of the distribution board enclosure
  • Replacement of the back plate can reduce waste compared with replacing the complete enclosure
Warranty Information

CHINT general warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels; contract terms and Australian distributor conditions may vary.

Available Now

Available through authorised CHINT distributors in Australia.
